Design spec sheet
Configured October 3, 2026

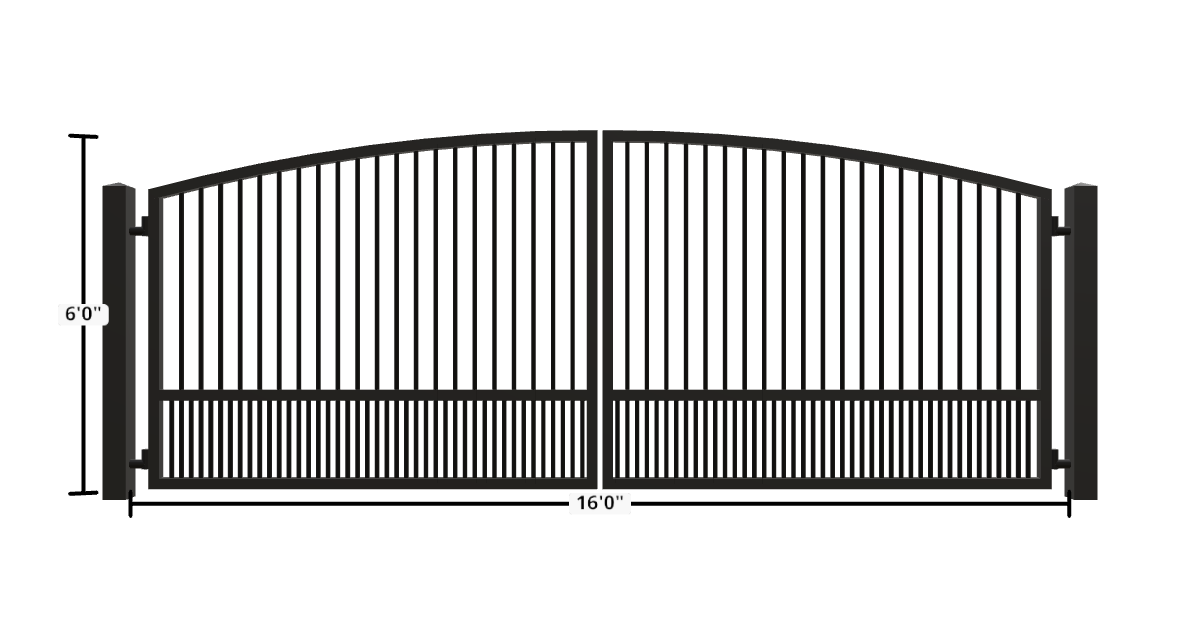

Driveway Gate
16'0" wide × 6'0" high
| Driveway Width | 16'0" (192 in) |
|---|---|
| Height | 6'0" (72 in) |
| Motion | Swing |
| Opening | Center |
| Arch | Yes |
| Finials | No |
| Pickets | Puppy |
| Ironwood | None |
| Color | Black |
| Frame | 2 in American steel tube |
|---|---|
| Posts | 0.120 in wall standard, 3/16 in wall heavy-duty |
| Finish | Satin powder coat over anti-gassing primer |
| Operator-ready | Yes; slide infills limited to UL 325-compliant openings |
| Built in | San Jose, California (handmade to order) |
| Production time | About 14 days |
| Shipping | LTL freight to all 50 states, or will-call pickup |
| Hardware included | Cane bolt(s) and/or gate latch, by configuration |
| Warranty | Lifetime limited structural warranty |
| Estimated weight | About 425 lb |
Configured price
$4,050
On October 3, 2026, before freight and tax
Driveway width is the clear gap between the inside faces of the two gate posts. We size the frame from that number, and we double-check your numbers before any steel is cut.
