Swing Gate Cost
Written by
Richard Ryan
Founder of GateFrames. Helping homeowners choose the right driveway gate for their property.
Swing Gate Cost. See span limits and install steps. Get instant pricing in the configurator.
Methodology note: cost guidance uses material, operator, and labor inputs with city-level adjustments. Always verify permits, utility clearances, and site constraints locally before installation.
Swing Driveway Gate Cost
Compare costs and what you need for swing gates. Prices are for 2026 and vary by area.
For more detail, see Cost Guide and Swing Automation.
Quick Summary
In this guide:
- Cost ranges and budget tiers
- Specifications and comparison
- Installer tips and next steps
Swing Gate Cost Comparison (2026)
Mid-range cost for swing gates by material.
| Material | Mid-Range Cost |
|---|---|
| Aluminum | $3,500-$6,500 |
| Steel | $4,500-$8,000 |
| Wrought Iron | $5,500-$10,000 |
| Wood | $3,000-$5,500 |
For more detail, see Swing Installation and Swing Maintenance.
Free shipping nationwide
Want the real number now? See Swing gate pricing in our live configurator with matching 3D model.
What You're Really Paying For (And Why It Matters)
The gate is only 35–45% of the bill. The rest? Concrete posts, wiring, the opener, and labor. Here's the breakdown for a typical steel swing:
| What You Pay For | % of Total | Notes |
|---|---|---|
| Gate | 35-45% | Material, welding, paint |
| Gate opener | 15-25% | Opener, remotes, safety sensors |
| Concrete posts | 10-15% | Posts in the ground |
| Electrical | 8-12% | Wiring to power the opener |
| Labor | 15-20% | Installing, final setup |
| Permits | 2-5% | Depends on your city |
Common add-ons: Intercom (+$500-$2,000), keypad (+$200-$600), car sensor (+$300-$800), fancy details (+$400-$1,500).
For more detail, see Swing Safety.
Budget Tier Comparison: Steel Swing
What do you get at each price point? Here's the breakdown - from budget-conscious to premium.
Budget-Conscious ($2,500-$4,500)
- Standard flat-panel gate with single powder coat
- Chain-drive operator with 2 remotes
- Standard footings with basic drainage
- Zinc-plated hinges and hardware
Mid-Range ($4,500-$8,000)
- Custom-profiled panels with premium powder coat
- Belt-drive operator with keypad and photo eyes
- Engineered footings with drainage channels
- Stainless steel ball-bearing hinges
Premium ($8,000-$15,000)
- Architectural steel with custom laser-cut patterns
- Smart operator with app, intercom, and camera integration
- Deep-pier footings with full electrical integration
- Marine-grade hardware with 10-year warranty
Buy Online vs. Local Contractor
Order online when you want scope control: Configure dimensions and hardware before checkout, keep a written record of specs, and compare options without sales pressure. Delivery workflows are designed for residential handling, including lift-gate options where available.
Use a local contractor when you want turnkey execution: Contractors can manage site prep, electrical, and full installation. Expect higher labor exposure and longer scheduling windows in high-cost markets.
Hybrid model (often best): Buy the gate online for specification clarity, then hire a local installer for onsite execution. This usually balances cost, schedule, and risk.
Specs That Matter: Swing
Swing Gate At a Glance
| Min width | 8 ft (single panel) |
| Max width | 20 ft (two panels) |
| Space needed | Clear space for gate to swing - usually 10-12 ft |
| Best for | Flat driveways, Gentle slopes |
| Opener type | Arm opener or underground opener |
Swing gates are the oldest type. Simple. Reliable. Still the most popular.
Swing Gate: What to Know
Best for: Flat or gentle slope. Under 16 ft wide. Clear space on one or both sides. Two panels with underground opener = cleanest look. No visible motor.
⚠️ Watch out: Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing. No plants. No cars. No mailbox. On a slope, the gate can hit the ground on the high side.
💡 Pro tip: Swing inward if you can. Keeps the gate off the street. Hides the opener. Looks cleaner. Exception: steep uphill driveways where inward swing drags on the ground.
Gate Type Comparison
Each gate type has trade-offs. Space, slope, and width requirements determine the best fit.
| Factor | Swing | Sliding | Cantilever | Bi-fold |
|---|---|---|---|---|
| Space needed | Full arc radius | Side track run | 1.5× width lateral | Minimal |
| Max width | 20 ft | 40 ft | 60 ft | 30 ft |
| Slope tolerance | Poor | Fair | Excellent | Poor |
| Typical speed | 12-18 sec | 8-14 sec | 8-14 sec | 6-10 sec |
| Maintenance | Low | Medium | Low-Medium | Medium |

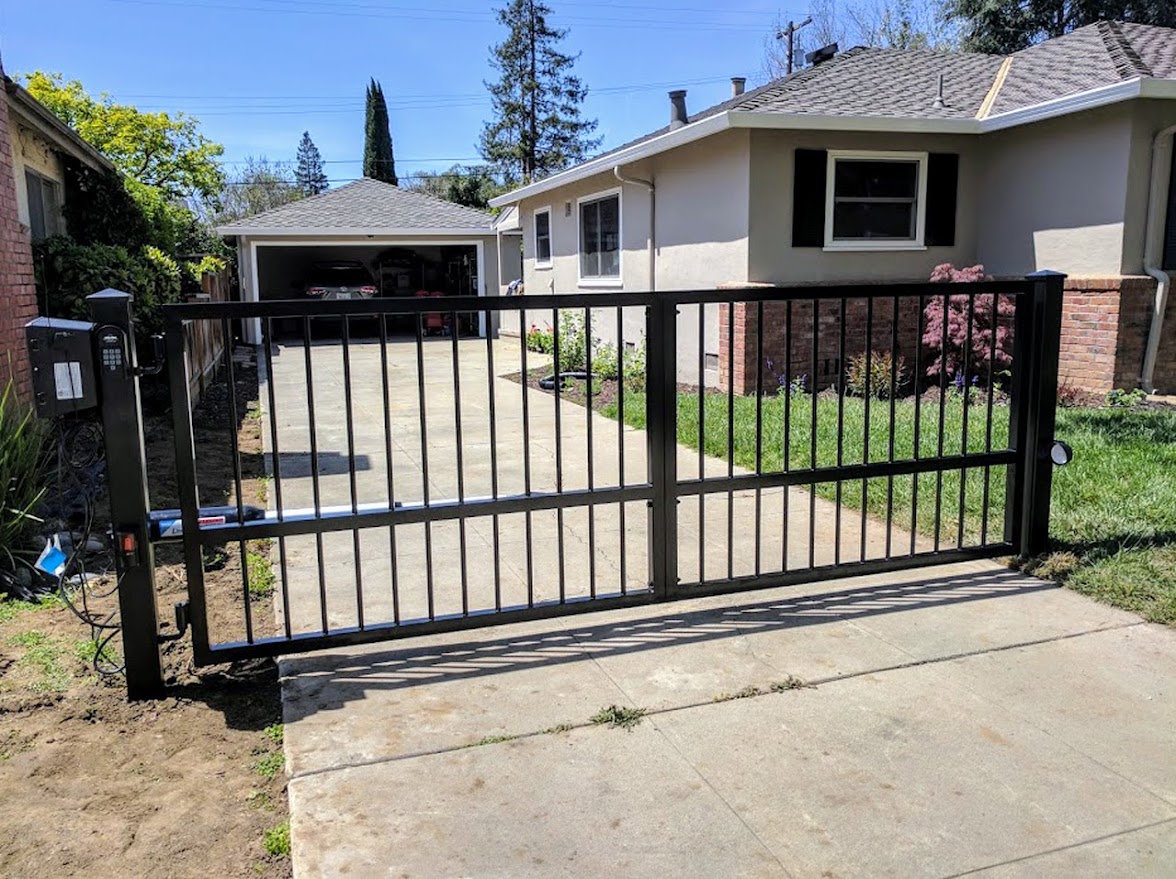

What Installers Wish You Knew (Before You Sign)
Methodology note: These tips come from common real-world install patterns. Always double-check local code, utility clearances, and your driveway layout before you start.
💡 Swing Gate (Aluminum)
Ask for stainless steel hinge pins. Aluminum pins can stick over time. The gate gets harder to open. A $15 stainless pin prevents a $500 fix.
Swing Gate Pro Tips
⚠️ Watch out: Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing. No plants. No cars. No mailbox. On a slope, the gate can hit the ground on the high side.
💡 Pro tip: Swing inward if you can. Keeps the gate off the street. Hides the opener. Looks cleaner. Exception: steep uphill driveways where inward swing drags on the ground.

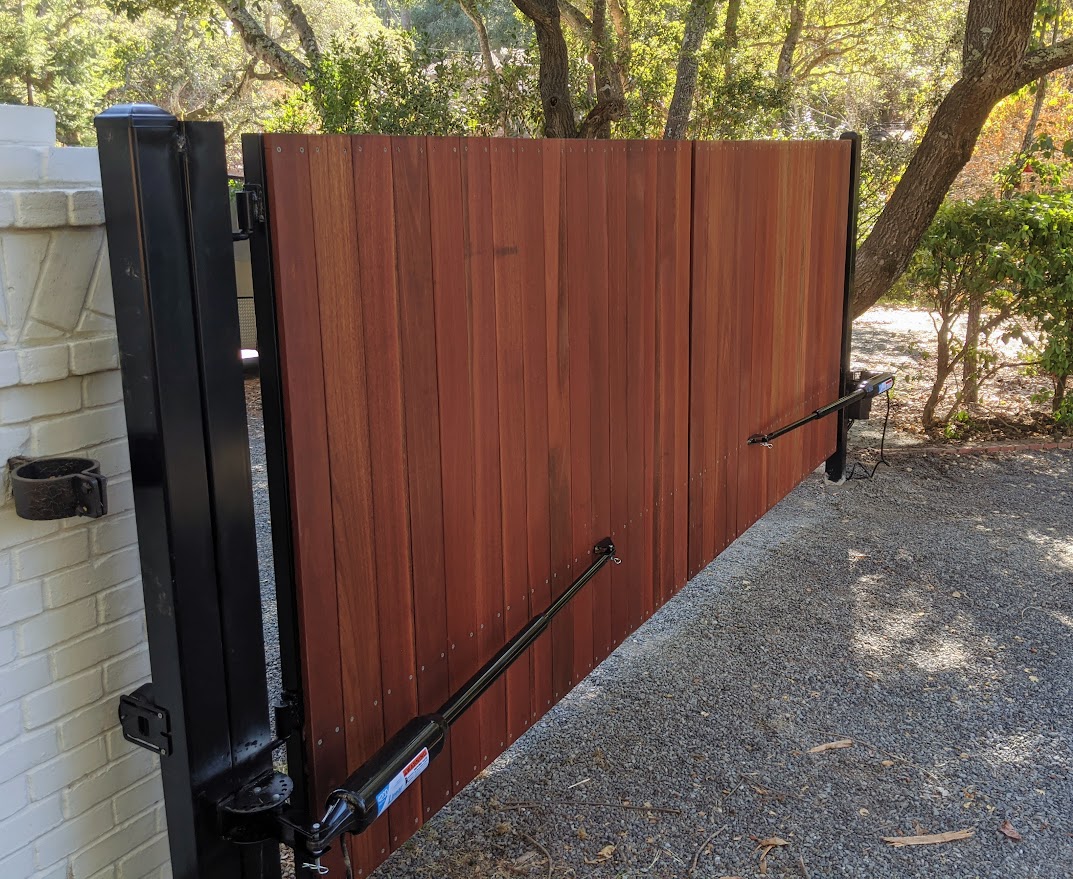

Real-World Project Insights
GateFrames has shipped driveway gates to every state. We've even installed train gates at the Maui airport - from residential driveways to commercial projects.
Every project starts the same: you want a gate. Your driveway has limits. Match the right gate to your property.
What makes a project go well:
- Measure the site. Do not guess.
- Posts sized for your soil
- Opener sized for your gate weight
- Expect 6-14 weeks. That is normal.
Did You Know?
Get 3 quotes minimum. Pricing varies 30-50% between installers for the same scope. Seriously.
Recommended Products
Based on this guide, review the most relevant next steps:
See configuration pricing when you're ready to validate dimensions and lead time.
Why GateFrames?
- Nationwide fulfillment process - Projects are delivered across the U.S. with handling options suited to residential sites.
- Instant custom pricing - You can price your gate online right away instead of waiting for a quote.
- 3D model matches your options - You can see your selected setup before buying.
- Install method designed for clarity - Two-person installation path with documented sequencing and support.
- Durable material system - Steel and wood configurations built for long service life with practical maintenance expectations.
- Scope control for custom projects - Complex requests can be quoted with explicit build requirements.
- Support during planning and install - Direct access to help when validating dimensions, hardware, and setup decisions.
- Evidence-led guidance - This blog maps pricing, permitting signals, and installation constraints so buyers can make defensible decisions.
Frequently Asked Questions
What space does a swing gate need? Clear space for gate to swing - usually 10-12 ft. Measure before you buy.
What's the biggest mistake with swing gates? Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing.
Do I need a permit for a driveway gate? Most cities require one. Annoying? Yes. Skippable? No. Check with your local building department.
Can I install a gate myself? Manual gates on flat driveways - yes. Automatic gates need wiring. Usually an electrician and permit. Pro install makes sure it meets safety rules.
