Swing Driveway Gate Safety
Compare costs and what you need for swing gates. Prices are for 2026 and vary by area.
For more detail, see Safety Guide and Swing Automation.
Quick Summary
In this guide:
- Specifications and comparison
- Installer tips and next steps
Required Safety Compliance
Automated gates are regulated because they can cause serious injury. These aren't optional - they're required by code.
📋 Federal & Industry Standards
- UL 325 - Entrapment protection: photo eyes, safety edges, or both
- ASTM F2200 - Gate fabrication standards for structural integrity
- NEC Article 600 - Electrical installation requirements for gate operators
- ADA compliance - If applicable for commercial or multi-family properties
Local Requirements
- Local building code - Height limits, setbacks, emergency access provisions
- State electrical code - May exceed NEC minimums in some states
- Emergency access - Fire department Knox box where required
Required Safety Devices
| Device | Purpose | Typical Cost |
|---|---|---|
| Photo eyes | Detect objects in gate path | $80-$200 per pair |
| Safety edges | Sense contact/pressure on gate edge | $150-$400 |
| Emergency release | Manual override for power failure | Included with operator |
| Knox box | Fire department access | $100-$300 |
| Warning signage | Alert pedestrians to automatic gate | $20-$50 |
For more detail, see Swing Cost and Swing Installation.
Swing Gate Safety: What You Need
Automatic gates have hurt people. Safety rules exist for a reason. Every device below matters. Skip one and you have a gap.
Swing-Specific Safety Considerations
Swing gates have spots where someone could get caught. Where the gate meets the post. Where it meets the center. Sensors must cover the full swing path. Not just when closed.
Spots That Need Sensors
Every automatic gate has spots where someone could get caught. You need sensors to cover them.
| Spot | What to cover | Device |
|---|---|---|
| Gate edge | The front of the gate | Pressure-sensitive edge |
| Gate path | Full swing or slide path | Beam sensor (photo eye) |
| Closing point | Where gate meets post | Contact edge or second beam |
| Above gate | For tall gates | Overhead sensor |
When Power Fails or Emergencies Happen
- Manual release: A key to open the gate when power is out
- Battery backup: Gate works 24+ hours without power (recommended)
- Fire dept access: Key box or code so they can get in
- Walk-through gate: A small gate so people do not have to use the motor gate
For more detail, see Swing Maintenance.
Specs That Matter: Swing
Swing Gate At a Glance
| Min width | 8 ft (single panel) |
| Max width | 20 ft (two panels) |
| Space needed | Clear space for gate to swing - usually 10-12 ft |
| Best for | Flat driveways, Gentle slopes |
| Opener type | Arm opener or underground opener |
Swing gates are the oldest type. Simple. Reliable. Still the most popular.
Swing Gate: What to Know
Best for: Flat or gentle slope. Under 16 ft wide. Clear space on one or both sides. Two panels with underground opener = cleanest look. No visible motor.
⚠️ Watch out: Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing. No plants. No cars. No mailbox. On a slope, the gate can hit the ground on the high side.
💡 Pro tip: Swing inward if you can. Keeps the gate off the street. Hides the opener. Looks cleaner. Exception: steep uphill driveways where inward swing drags on the ground.
Gate Type Comparison
Each gate type has trade-offs. Space, slope, and width requirements determine the best fit.
| Factor | Swing | Sliding | Cantilever | Bi-fold |
|---|---|---|---|---|
| Space needed | Full arc radius | Side track run | 1.5× width lateral | Minimal |
| Max width | 20 ft | 40 ft | 60 ft | 30 ft |
| Slope tolerance | Poor | Fair | Excellent | Poor |
| Typical speed | 12-18 sec | 8-14 sec | 8-14 sec | 6-10 sec |
| Maintenance | Low | Medium | Low-Medium | Medium |

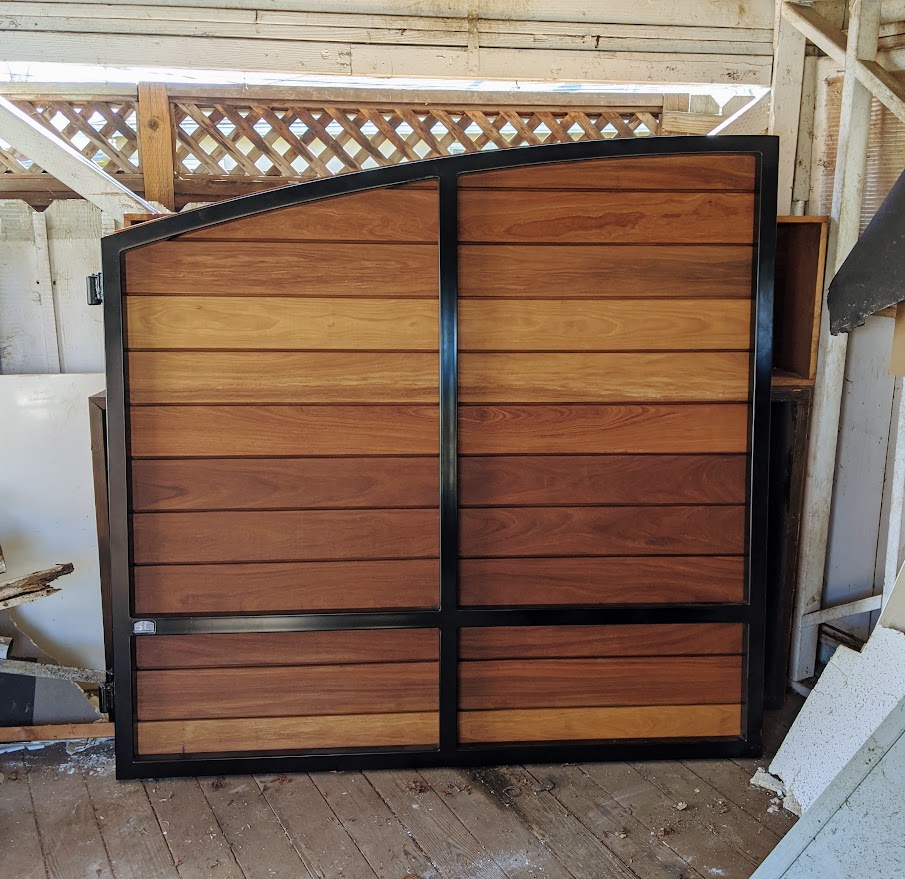

What Installers Wish You Knew (Before You Sign)
Methodology note: These tips come from common real-world install patterns. Always double-check local code, utility clearances, and your driveway layout before you start.
💡 Swing Gate (Wrought Iron)
Hinges should be bolted on, not welded in place. Welding on site can warp the hinges. A warped hinge means a sagging gate. For months.
Swing Gate Pro Tips
⚠️ Watch out: Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing. No plants. No cars. No mailbox. On a slope, the gate can hit the ground on the high side.
💡 Pro tip: Swing inward if you can. Keeps the gate off the street. Hides the opener. Looks cleaner. Exception: steep uphill driveways where inward swing drags on the ground.

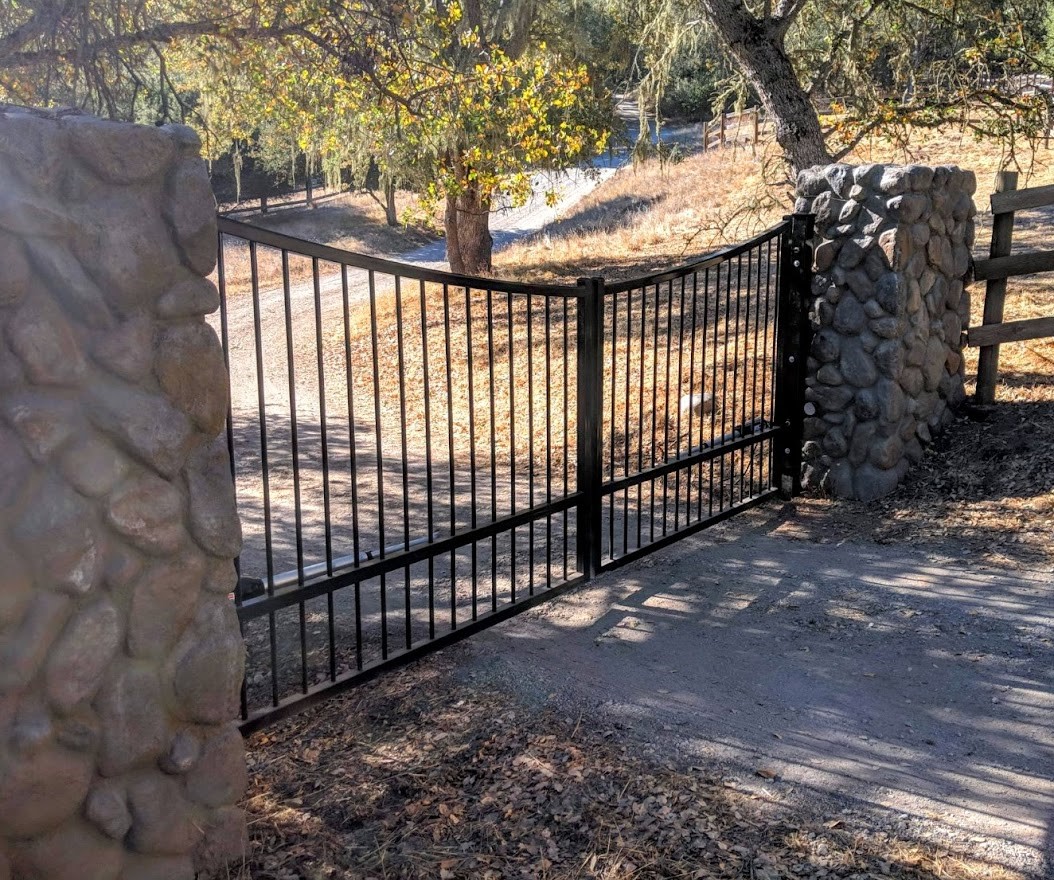

Real-World Project Insights
GateFrames has shipped driveway gates to every state. We've even installed train gates at the Maui airport - from residential driveways to commercial projects.
Every project starts the same: you want a gate. Your driveway has limits. Match the right gate to your property.
What makes a project go well:
- Measure the site. Do not guess.
- Posts sized for your soil
- Opener sized for your gate weight
- Expect 6-14 weeks. That is normal.
Gate Trivia
GateFrames has installed train gates at the Maui airport. From residential driveways to commercial projects.
Recommended Products
Based on this guide, review the most relevant next steps:
See configuration pricing when you're ready to validate dimensions and lead time.
Why GateFrames?
- Nationwide fulfillment process - Projects are delivered across the U.S. with handling options suited to residential sites.
- Instant custom pricing - You can price your gate online right away instead of waiting for a quote.
- 3D model matches your options - You can see your selected setup before buying.
- Install method designed for clarity - Two-person installation path with documented sequencing and support.
- Durable material system - Steel and wood configurations built for long service life with practical maintenance expectations.
- Scope control for custom projects - Complex requests can be quoted with explicit build requirements.
- Support during planning and install - Direct access to help when validating dimensions, hardware, and setup decisions.
- Evidence-led guidance - This blog maps pricing, permitting signals, and installation constraints so buyers can make defensible decisions.
Frequently Asked Questions
What space does a swing gate need? Clear space for gate to swing - usually 10-12 ft. Measure before you buy.
What's the biggest mistake with swing gates? Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing.
Do I need a permit for a driveway gate? Most cities require one. Annoying? Yes. Skippable? No. Check with your local building department.
Can I install a gate myself? Manual gates on flat driveways - yes. Automatic gates need wiring. Usually an electrician and permit. Pro install makes sure it meets safety rules.
