Swing Driveway Gate Maintenance
Compare costs and what you need for swing gates. Prices are for 2026 and vary by area.
For more detail, see Maintenance Guide and Swing Automation.
Quick Summary
In this guide:
- Specifications and comparison
- Installer tips and next steps
your gate Maintenance Schedule
A little upkeep goes a long way. Regular maintenance extends gate lifespan by 30–50% and catches small issues before they become expensive repairs.
| Frequency | Task | Details |
|---|---|---|
| Monthly | Visual inspection | Check for damage, rust spots, loose hardware |
| Quarterly | Lubrication | Grease hinges, rollers, and pivot points with lithium-based lubricant |
| Biannually | Hardware torque check | Tighten all bolts, check anchor bolts at base |
| Annually | Full system inspection | Operator function test, safety sensor alignment, electrical connections |
| Every 2-3 years | Finish maintenance | Touch-up or recoat as needed |
For more detail, see Swing Cost and Swing Installation.
Climate & Weather Considerations
Where you live shapes how your gate ages. Key factors by zone:
- Coastal areas: Salt air accelerates corrosion; use marine-grade hardware
- Hot/dry climates: UV degrades coatings; choose UV-stabilized finishes
- Cold climates: Frost heave affects footings; set posts below frost line
- High-wind areas: Wind loading stresses hardware; consider perforated panels
For more detail, see Swing Safety.
Specs That Matter: Swing
Swing Gate At a Glance
| Min width | 8 ft (single panel) |
| Max width | 20 ft (two panels) |
| Space needed | Clear space for gate to swing - usually 10-12 ft |
| Best for | Flat driveways, Gentle slopes |
| Opener type | Arm opener or underground opener |
Swing gates are the oldest type. Simple. Reliable. Still the most popular.
Swing Gate: What to Know
Best for: Flat or gentle slope. Under 16 ft wide. Clear space on one or both sides. Two panels with underground opener = cleanest look. No visible motor.
⚠️ Watch out: Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing. No plants. No cars. No mailbox. On a slope, the gate can hit the ground on the high side.
💡 Pro tip: Swing inward if you can. Keeps the gate off the street. Hides the opener. Looks cleaner. Exception: steep uphill driveways where inward swing drags on the ground.
Gate Type Comparison
Each gate type has trade-offs. Space, slope, and width requirements determine the best fit.
| Factor | Swing | Sliding | Cantilever | Bi-fold |
|---|---|---|---|---|
| Space needed | Full arc radius | Side track run | 1.5× width lateral | Minimal |
| Max width | 20 ft | 40 ft | 60 ft | 30 ft |
| Slope tolerance | Poor | Fair | Excellent | Poor |
| Typical speed | 12-18 sec | 8-14 sec | 8-14 sec | 6-10 sec |
| Maintenance | Low | Medium | Low-Medium | Medium |
What Installers Wish You Knew (Before You Sign)
Methodology note: These tips come from common real-world install patterns. Always double-check local code, utility clearances, and your driveway layout before you start.
💡 Swing Gate (Aluminum)
Ask for stainless steel hinge pins. Aluminum pins can stick over time. The gate gets harder to open. A $15 stainless pin prevents a $500 fix.
Swing Gate Pro Tips
⚠️ Watch out: Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing. No plants. No cars. No mailbox. On a slope, the gate can hit the ground on the high side.
💡 Pro tip: Swing inward if you can. Keeps the gate off the street. Hides the opener. Looks cleaner. Exception: steep uphill driveways where inward swing drags on the ground.

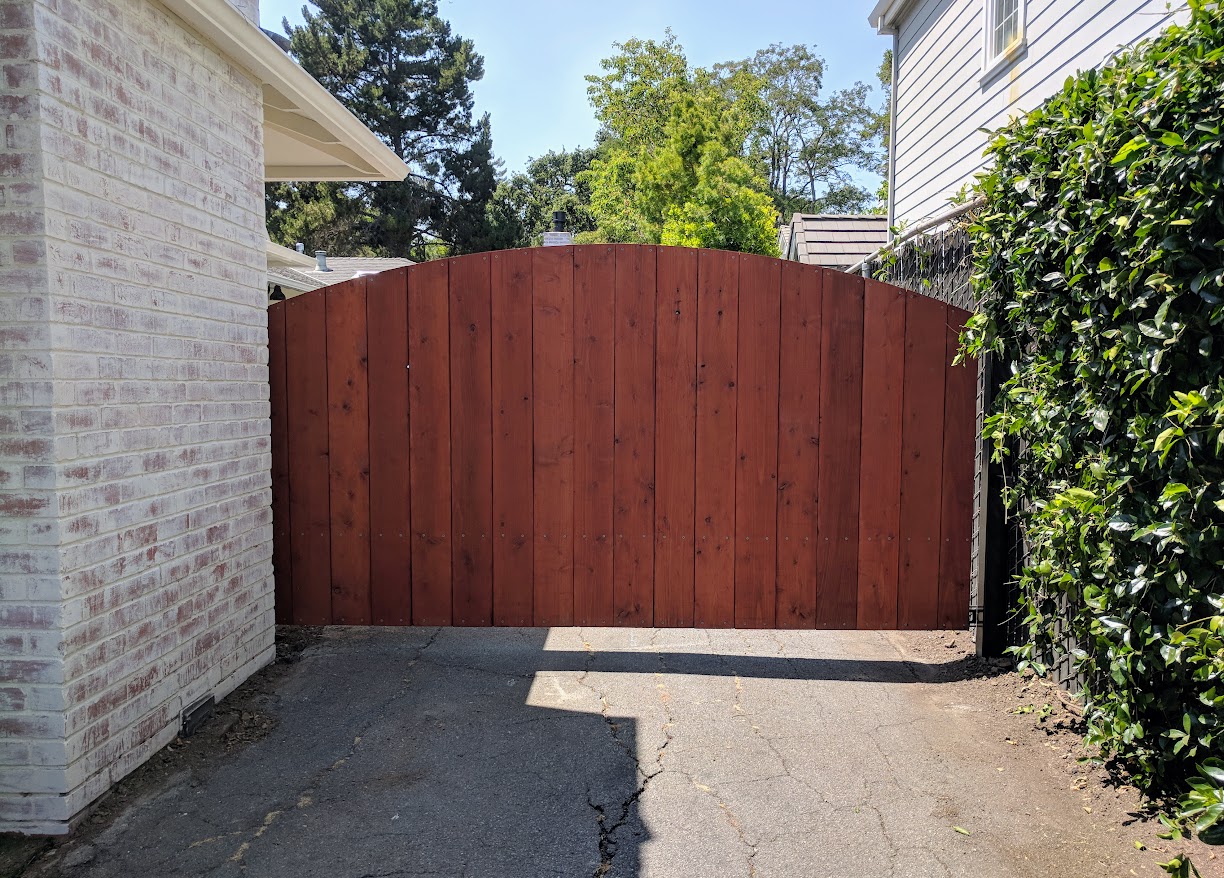

Real-World Project Insights
GateFrames has shipped driveway gates to every state. We've even installed train gates at the Maui airport - from residential driveways to commercial projects.
Every project starts the same: you want a gate. Your driveway has limits. Match the right gate to your property.
What makes a project go well:
- Measure the site. Do not guess.
- Posts sized for your soil
- Opener sized for your gate weight
- Expect 6-14 weeks. That is normal.
Did You Know?
Swing gates have been around since medieval castles. The design hasn't changed much because it works.
Recommended Products
Based on this guide, review the most relevant next steps:
See configuration pricing when you're ready to validate dimensions and lead time.
Why GateFrames?
- Nationwide fulfillment process - Projects are delivered across the U.S. with handling options suited to residential sites.
- Instant custom pricing - You can price your gate online right away instead of waiting for a quote.
- 3D model matches your options - You can see your selected setup before buying.
- Install method designed for clarity - Two-person installation path with documented sequencing and support.
- Durable material system - Steel and wood configurations built for long service life with practical maintenance expectations.
- Scope control for custom projects - Complex requests can be quoted with explicit build requirements.
- Support during planning and install - Direct access to help when validating dimensions, hardware, and setup decisions.
- Evidence-led guidance - This blog maps pricing, permitting signals, and installation constraints so buyers can make defensible decisions.
Frequently Asked Questions
What space does a swing gate need? Clear space for gate to swing - usually 10-12 ft. Measure before you buy.
What's the biggest mistake with swing gates? Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing.
Do I need a permit for a driveway gate? Most cities require one. Annoying? Yes. Skippable? No. Check with your local building department.
Can I install a gate myself? Manual gates on flat driveways - yes. Automatic gates need wiring. Usually an electrician and permit. Pro install makes sure it meets safety rules.
