Cantilever Driveway Gate Safety
Compare costs and what you need for cantilever gates. Prices are for 2026 and vary by area.
For more detail, see Safety Guide and Cantilever Automation.
Quick Summary
In this guide:
- Specifications and comparison
- Installer tips and next steps
Gate Safety Standards You Must Meet
Before your gate operates for the first time, it must pass these safety requirements. Your installer should handle compliance, but you should verify.
📋 Federal & Industry Standards
- UL 325 - Entrapment protection: photo eyes, safety edges, or both
- ASTM F2200 - Gate fabrication standards for structural integrity
- NEC Article 600 - Electrical installation requirements for gate operators
- ADA compliance - If applicable for commercial or multi-family properties
Local Requirements
- Local building code - Height limits, setbacks, emergency access provisions
- State electrical code - May exceed NEC minimums in some states
- Emergency access - Fire department Knox box where required
Required Safety Devices
| Device | Purpose | Typical Cost |
|---|---|---|
| Photo eyes | Detect objects in gate path | $80-$200 per pair |
| Safety edges | Sense contact/pressure on gate edge | $150-$400 |
| Emergency release | Manual override for power failure | Included with operator |
| Knox box | Fire department access | $100-$300 |
| Warning signage | Alert pedestrians to automatic gate | $20-$50 |
For more detail, see Cantilever Cost and Cantilever Installation.
Safety for Cantilever Gates
Goal: No person, pet, or car gets hit by the gate. You need the right sensors in the right spots.
Cantilever-Specific Safety Considerations
Cantilever gates have an extra part that moves the opposite way. That part needs its own sensors. Many installers forget.
Spots That Need Sensors
Every automatic gate has spots where someone could get caught. You need sensors to cover them.
| Spot | What to cover | Device |
|---|---|---|
| Gate edge | The front of the gate | Pressure-sensitive edge |
| Gate path | Full swing or slide path | Beam sensor (photo eye) |
| Closing point | Where gate meets post | Contact edge or second beam |
| Above gate | For tall gates | Overhead sensor |
When Power Fails or Emergencies Happen
- Manual release: A key to open the gate when power is out
- Battery backup: Gate works 24+ hours without power (recommended)
- Fire dept access: Key box or code so they can get in
- Walk-through gate: A small gate so people do not have to use the motor gate
For more detail, see Cantilever Maintenance.
Specs That Matter: Cantilever
Cantilever Gate At a Glance
| Min width | 10 ft |
| Max width | 60 ft |
| Space needed | Space beside fence for gate - 1.5× gate width (extra part balances it) |
| Best for | Any slope - gate floats above ground, Uneven ground, Gravel driveways |
| Opener type | Chain or gear drive |
Cantilever gates float above the ground. No track. They handle slopes and gravel that other gates cannot.
Cantilever Gate: What to Know
Best for: Uneven ground. Gravel. Steep slopes. Snow and ice. The gate floats. Ground does not matter. Best for ranch and rural properties.
⚠️ Watch out: The gate needs extra length. A 20-ft opening needs a 30-ft gate. The extra part balances it. Many people are surprised how much fence space it uses.
💡 Pro tip: Gravel driveway? Cantilever is your answer. No track on the ground. No gravel jams. No track to clean. Other gate types struggle with gravel.
Gate Type Comparison
Each gate type has trade-offs. Space, slope, and width requirements determine the best fit.
| Factor | Swing | Sliding | Cantilever | Bi-fold |
|---|---|---|---|---|
| Space needed | Full arc radius | Side track run | 1.5× width lateral | Minimal |
| Max width | 20 ft | 40 ft | 60 ft | 30 ft |
| Slope tolerance | Poor | Fair | Excellent | Poor |
| Typical speed | 12-18 sec | 8-14 sec | 8-14 sec | 6-10 sec |
| Maintenance | Low | Medium | Low-Medium | Medium |
What Installers Wish You Knew (Before You Sign)
Methodology note: These tips come from common real-world install patterns. Always double-check local code, utility clearances, and your driveway layout before you start.
💡 Cantilever Gate (Aluminum)
Aluminum flexes more than steel. Over 16 ft? Ask for a brace inside the frame. About $200. It removes the wobble. Gate feels solid.
Cantilever Gate Pro Tips
⚠️ Watch out: The gate needs extra length. A 20-ft opening needs a 30-ft gate. The extra part balances it. Many people are surprised how much fence space it uses.
💡 Pro tip: Gravel driveway? Cantilever is your answer. No track on the ground. No gravel jams. No track to clean. Other gate types struggle with gravel.

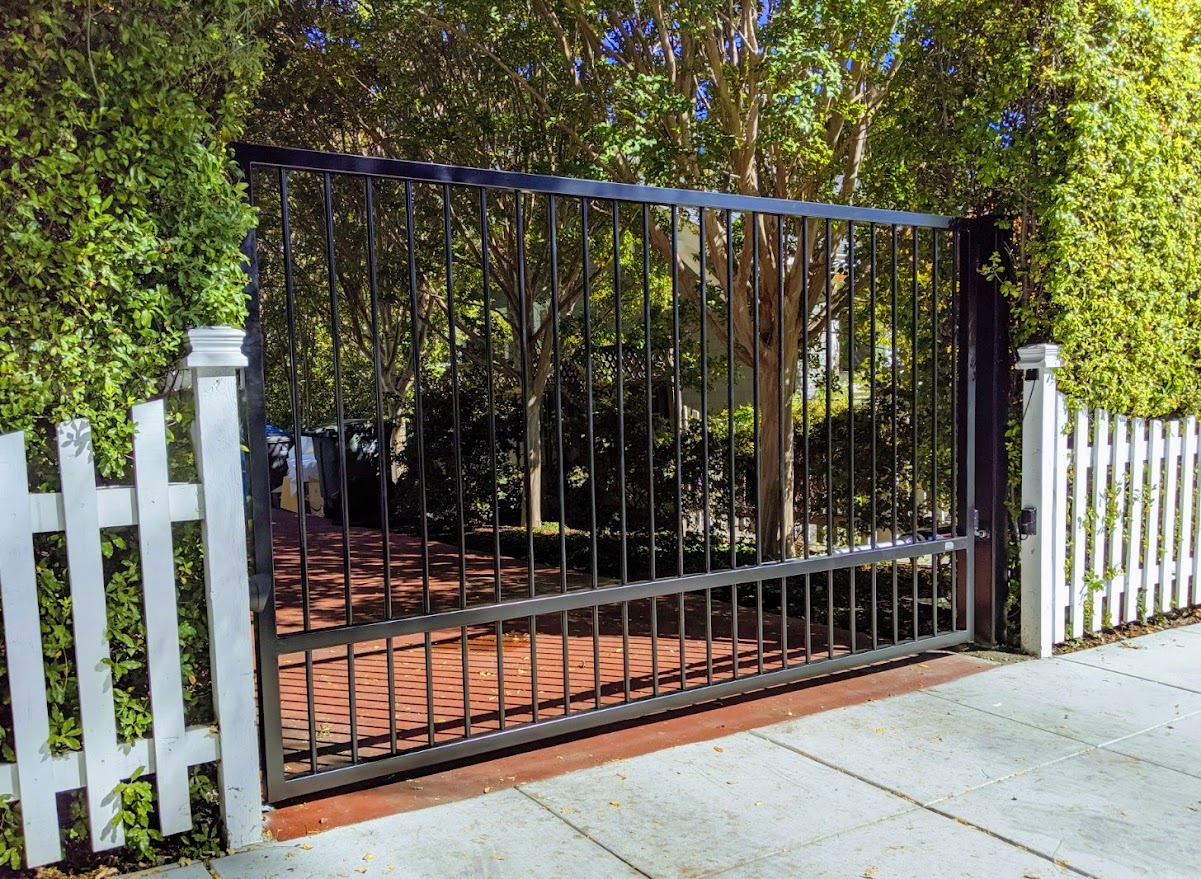

Real-World Project Insights
GateFrames has shipped driveway gates to every state. We've even installed train gates at the Maui airport - from residential driveways to commercial projects.
Every project starts the same: you want a gate. Your driveway has limits. Match the right gate to your property.
What makes a project go well:
- Measure the site. Do not guess.
- Posts sized for your soil
- Opener sized for your gate weight
- Expect 6-14 weeks. That is normal.
Did You Know?
Cantilever gates float above the ground. No track, no gravel jams. Gravel driveway? Cantilever is your friend.
Recommended Products
Based on this guide, review the most relevant next steps:
See configuration pricing when you're ready to validate dimensions and lead time.
Why GateFrames?
- Nationwide fulfillment process - Projects are delivered across the U.S. with handling options suited to residential sites.
- Instant custom pricing - You can price your gate online right away instead of waiting for a quote.
- 3D model matches your options - You can see your selected setup before buying.
- Install method designed for clarity - Two-person installation path with documented sequencing and support.
- Durable material system - Steel and wood configurations built for long service life with practical maintenance expectations.
- Scope control for custom projects - Complex requests can be quoted with explicit build requirements.
- Support during planning and install - Direct access to help when validating dimensions, hardware, and setup decisions.
- Evidence-led guidance - This blog maps pricing, permitting signals, and installation constraints so buyers can make defensible decisions.
Frequently Asked Questions
What space does a cantilever gate need? Space beside fence for gate - 1.5× gate width (extra part balances it). Measure before you buy.
What's the biggest mistake with cantilever gates? The gate needs extra length. A 20-ft opening needs a 30-ft gate.
Do I need a permit for a driveway gate? Most cities require one. Annoying? Yes. Skippable? No. Check with your local building department.
Can I install a gate myself? Manual gates on flat driveways - yes. Automatic gates need wiring. Usually an electrician and permit. Pro install makes sure it meets safety rules.
