Swing Gate Installation

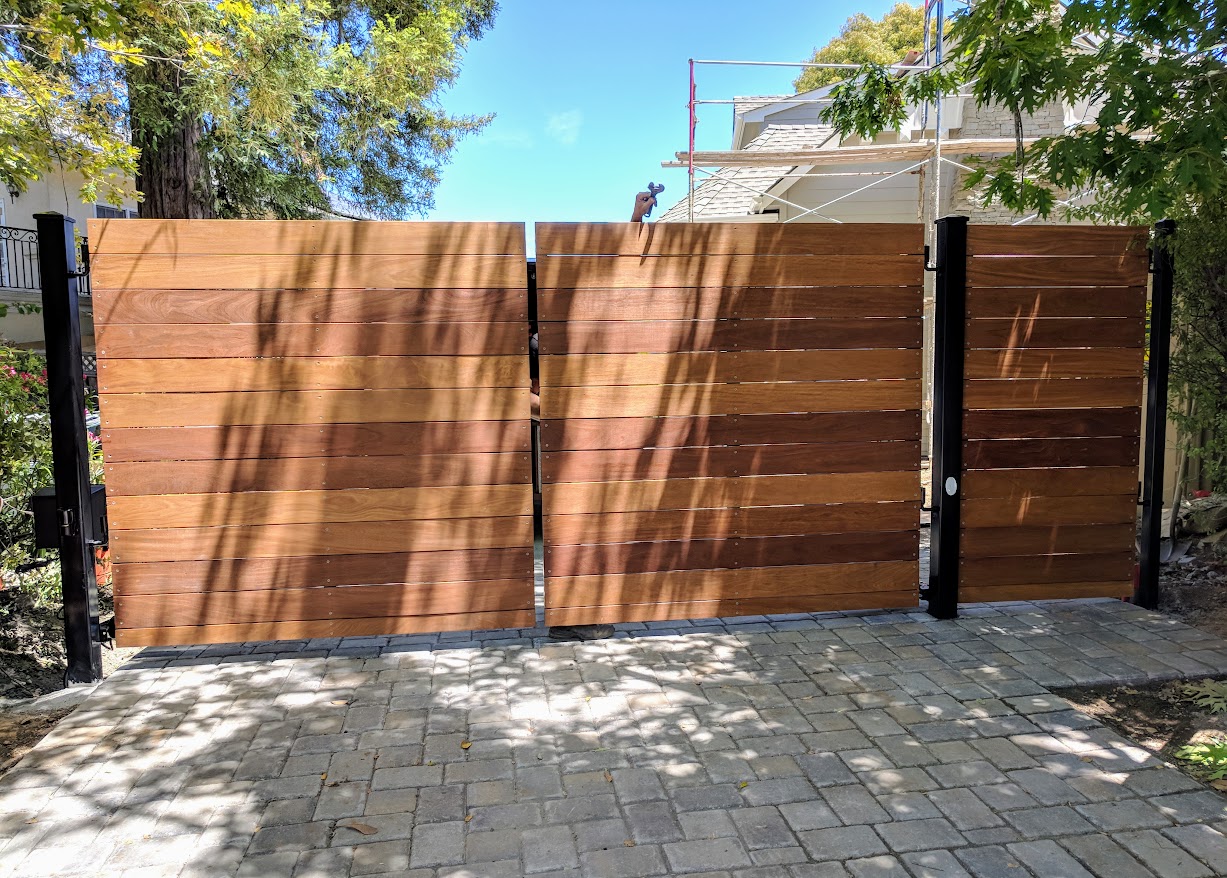

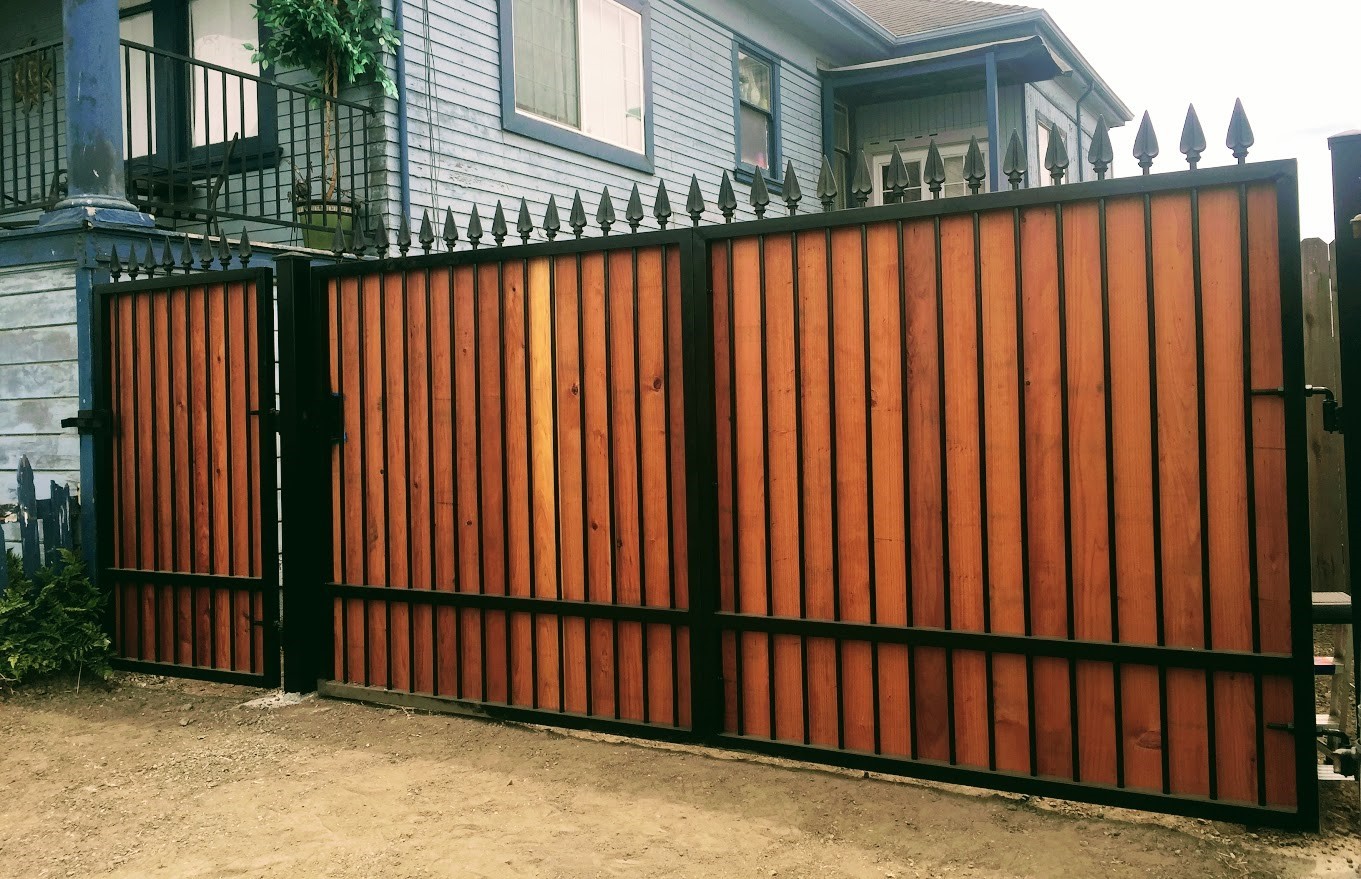

Swing Driveway Gate Installation

Compare costs and what you need for swing gates. Prices are for 2026 and vary by area.

For more detail, see Installation Guide and Swing Automation.

Quick Summary

In this guide:

• Step-by-step installation checklist
• Timeline and permit info
• Specifications and comparison
• Installer tips and next steps

Your Swing Installation Checklist - Step by Step

Two people. A few hours. Our step-by-step process. Steel and wood - no crane needed. You can do this.

Step 1: Measure where the gate will go

Measure twice. Write it down.

• We recommend a minimum of 2" clearance from any object the posts may be up against (e.g. house, shared neighbor fence, etc.)
• Mark the location where the posts will be installed with white paint
• ⚠️ Call 811 to have underground utilities located before you dig

Step 2: Dig the post holes

• Once the area has been cleared and there are no obstructions, dig the post holes
• We recommend a minimum 18" x 18" x 36" hole for each post (depth and size can increase depending on how solid the ground is)
• More concrete and larger hole size required for solo gates
• Use crushed base rock at the bottom of the hole for extra help with drainage and support for posts

Step 3: Find the absolute highest elevation in the gate's path

• Use a tape measure and a level to determine where the highest elevation is in the path of the gate (open, closed, and along the arch of the gate)
• Once the highest point along the path of the gate has been found, set the posts to that height and level across to the next post. Post height from highest elevation point provides a minimum of 2" clearance underneath the gate
• Top of post 61" plus highest elevation point for Arch Top Gates (the posts might be higher than this depending on the elevation point)
• Top of post 73" plus highest elevation point for Flat Top Gates (the posts might be higher than this depending on the elevation point)

Step 4: Screw in hinges once posts have been set

• Setting time is a minimum of 2-4 hrs for fast-drying concrete and 1-3 days for standard concrete
• With provided hinges, screw in the bottom hinge into the gate post (the hinge with only 1 nut)
• For recommended 4" hinge spacing, the center of the adjustable bolts should be 2⅝" from the post
• For the top hinge, remove the second nut
• Slide the hinge bolt through the top hole of the post and then reach inside and tighten the second nut so that you acquire the 2⅝" spacing as specified above

Step 5: Grease the hinges and insert the ball bearing

• We recommend using standard car grease (roughly 2 pumps if using a grease gun, or a generous amount if by hand)
• Using a screwdriver or your pinky, push in the ball bearing into the barrel of the hinge so that it stays lodged at the top (we recommend wearing rubber gloves)

Step 6: Hang and adjust the gate

• We recommend using 2 or more people for hanging the gate
• Carefully lift the gate and position it so that barrels of the gate are directly over the top of the ¾" adjustable bolts you inserted into the posts (Step 4)
• Lower the gate so that the barrels slide over the adjustable hinge bolts (might only slide on slightly at first)
• Once the gate is resting on the adjustable hinge bolts, swing the gate carefully back and forth so that the gate is seated fully (there may be a ⅛" gap between the welded washer on the adjustable hinge bolts and the bottom of the barrel)
• If the gate is not aligned, loosen the top bolt of the hinges and lift the gates in the center so that they match and are level (you can use a 2" wedge underneath the gate)

For more detail, see Swing Cost and Swing Maintenance.

From Order to Operating: Your Steel Swing Gate Timeline

Most projects take 6–14 weeks. Here's what happens when.

Total project timeline: Typically 6–14 weeks from initial consultation to operating gate, depending on permit speed and fabrication complexity.

For more detail, see Swing Safety.

Do You Need a Permit?

Permits are a pain. But skip them and you risk fines, removal, or voided insurance. Short answer: almost always yes. Automatic gates and most gates over 6 ft need a permit.

⚠️ Why it matters:

• Insurance: Claims can be denied for unpermitted gates
• Selling: You must disclose. Buyer may make you remove it
• Safety: Permits check that your gate meets safety rules

Typical rules:

• Height limit (6-8 ft in most areas)
• Distance from property line (varies)
• Electrical permit for the opener
• Emergency access (fire dept may need a key)

Specs That Matter: Swing

Swing Gate At a Glance

Swing gates are the oldest type. Simple. Reliable. Still the most popular.

Swing Gate: What to Know

Best for: Flat or gentle slope. Under 16 ft wide. Clear space on one or both sides. Two panels with underground opener = cleanest look. No visible motor.

⚠️ Watch out: Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing. No plants. No cars. No mailbox. On a slope, the gate can hit the ground on the high side.

💡 Pro tip: Swing inward if you can. Keeps the gate off the street. Hides the opener. Looks cleaner. Exception: steep uphill driveways where inward swing drags on the ground.

Gate Type Comparison

Each gate type has trade-offs. Space, slope, and width requirements determine the best fit.

What Installers Wish You Knew (Before You Sign)

Methodology note: These tips come from common real-world install patterns. Always double-check local code, utility clearances, and your driveway layout before you start.

💡 Swing Gate (Wood)

Wood gates need a steel frame inside. All-wood gates sag. It is a matter of when, not if. Steel frame + wood panels = 15+ years.

Swing Gate Pro Tips

⚠️ Watch out: Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing. No plants. No cars. No mailbox. On a slope, the gate can hit the ground on the high side.

💡 Pro tip: Swing inward if you can. Keeps the gate off the street. Hides the opener. Looks cleaner. Exception: steep uphill driveways where inward swing drags on the ground.

Real-World Project Insights

GateFrames has shipped driveway gates to every state. We've even installed train gates at the Maui airport - from residential driveways to commercial projects.

Every project starts the same: you want a gate. Your driveway has limits. Match the right gate to your property.

What makes a project go well:

• Measure the site. Do not guess.
• Posts sized for your soil
• Opener sized for your gate weight
• Expect 6-14 weeks. That is normal.

Fun Fact

The foundation outlasts every other component. Cut corners there and you'll pay for it in 5 years.

Recommended Products

Based on this guide, review the most relevant next steps:

• Swing driveway gate guide
• Steel Swing options
• Swing driveway gate pricing

See configuration pricing when you're ready to validate dimensions and lead time.

Why GateFrames?

• Nationwide fulfillment process - Projects are delivered across the U.S. with handling options suited to residential sites.
• Instant custom pricing - You can price your gate online right away instead of waiting for a quote.
• 3D model matches your options - You can see your selected setup before buying.
• Install method designed for clarity - Two-person installation path with documented sequencing and support.
• Durable material system - Steel and wood configurations built for long service life with practical maintenance expectations.
• Scope control for custom projects - Complex requests can be quoted with explicit build requirements.
• Support during planning and install - Direct access to help when validating dimensions, hardware, and setup decisions.
• Evidence-led guidance - This blog maps pricing, permitting signals, and installation constraints so buyers can make defensible decisions.

Frequently Asked Questions

What space does a swing gate need? Clear space for gate to swing - usually 10-12 ft. Measure before you buy.

What's the biggest mistake with swing gates? Not leaving enough room. A 12-ft gate needs 12 ft of empty space to swing.

Do I need a permit for a driveway gate? Most cities require one. Annoying? Yes. Skippable? No. Check with your local building department.

Can I install a gate myself? Manual gates on flat driveways - yes. Automatic gates need wiring. Usually an electrician and permit. Pro install makes sure it meets safety rules.
