Driveway Gate Installation Guide [2026]
Simple installation guide: what things cost, how long install takes, and which materials fit your budget. Get instant pricing — no quote wait.
Richard Ryan
Founder of GateFrames. Helping homeowners choose the right driveway gate for their property.
Methodology note: cost guidance uses material, operator, and labor inputs with city-level adjustments. Always verify permits, utility clearances, and site constraints locally before installation.
Driveway Gate Installation Guide [2026]
A good gate lasts decades. Pick the right materials and type. Follow local rules. This guide walks you through each step.
What Makes Installation Easy or Hard?
These things affect your project:
| Factor | What It Means | Why It Matters |
|---|---|---|
| Driveway slope | Is your driveway flat or sloped? | Steep slopes limit which gate types work |
| Opening width | How wide is the gap? | Over 20 ft needs special setups |
| Soil type | What's under the ground? | Clay soil can add $1,000+ to concrete posts |
| Power | Do you have electricity nearby? | No power? You need solar or manual |
| HOA rules | Does your neighborhood have rules? | Some limit height, material, or style |
How Hard Is Each Material?
| Material | Difficulty | Time | Need a Crane? |
|---|---|---|---|
| Aluminum | Easiest | 1 day | Rarely |
| Wood | Moderate | 1-2 days | No |
| Steel | Harder | 1-2 days | GateFrames: No. Traditional: Often |
| Wrought Iron | Hardest | 2-3 days | Usually |
For more detail, see Installation in Austin and Installation in Boston.
Quick Summary
In this guide:
- Step-by-step installation checklist
- Timeline and permit info
- Installer tips and next steps
Before You Buy - Quick Checklist
- Measure your opening - Width between posts (or where they'll go). Note any slope.
- Call 811 - Have utilities marked before you dig. Free in all 50 states.
- Check HOA rules - Height limits, design approval, setback requirements.
- Set your budget - Gate + opener + foundation + electrical. See the cost breakdown above.
- Decide: DIY or pro? - GateFrames ships nationwide for DIY. Or hire a local installer.
- Need custom sizing or options? - Build it in the configurator first. You will get instant pricing for most setups.
- Worried about unloading? - LTL trucks can include lift gates; kits can be unloaded piece by piece on the truck for lighter handling.
Your Driveway Gate Installation Checklist - Step by Step
Here's the step-by-step process.
- Site survey - Measure opening width, grade change, utility locations
- Material & gate type selection - Match to site conditions, budget, and aesthetic goals
- Permit application - Submit to local building department with drawings and operator specs
- Foundation & post installation - Concrete footings below frost line, plumb columns
- Gate hanging & hardware - Install gate panels with weight-rated hinges
- Operator & electrical - Mount motor, run conduit, install GFCI outlet
- Safety devices - Photo eyes, safety edges, emergency manual release
- Commissioning - Program limits, test safety reversal, handover
For more detail, see Installation in Charlotte and Installation in Chicago.
Gate Type Comparison
Each gate type has trade-offs. Space, slope, and width requirements determine the best fit.
| Factor | Swing | Sliding | Cantilever | Bi-fold |
|---|---|---|---|---|
| Space needed | Full arc radius | Side track run | 1.5× width lateral | Minimal |
| Max width | 20 ft | 40 ft | 60 ft | 30 ft |
| Slope tolerance | Poor | Fair | Excellent | Poor |
| Typical speed | 12-18 sec | 8-14 sec | 8-14 sec | 6-10 sec |
| Maintenance | Low | Medium | Low-Medium | Medium |
For more detail, see Installation in Columbus and Installation in Dallas.

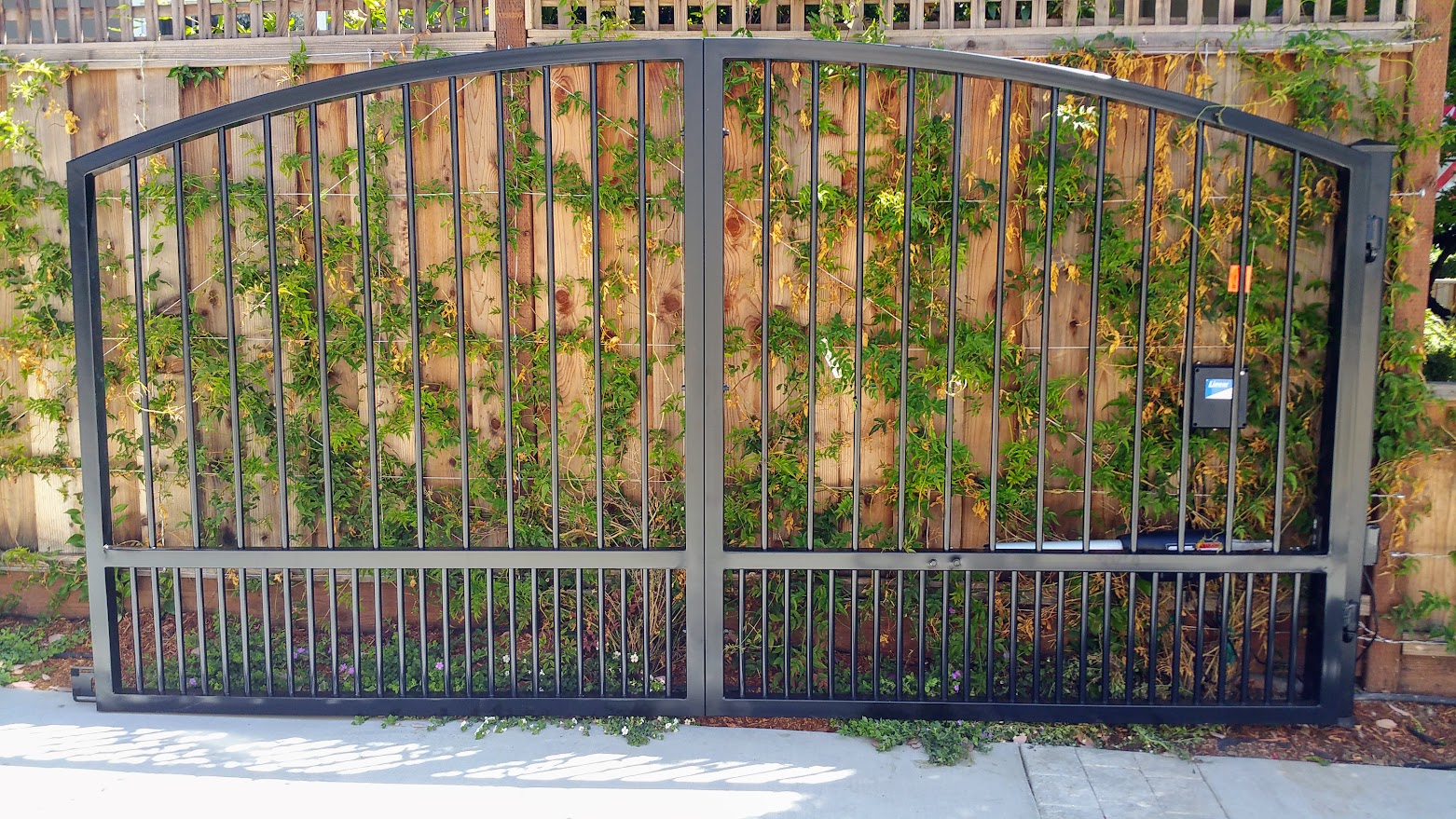

What Installers Wish You Knew (Before You Sign)
Methodology note: These tips come from common real-world install patterns. Always double-check local code, utility clearances, and your driveway layout before you start.
- Get 3 quotes minimum - pricing varies 30-50% between installers for the same scope
- Ask about warranty scope - does it cover the gate, operator, finish, AND labor?
- Check their concrete work - the foundation outlasts every other component; cut corners here and you'll pay for it in 5 years
- Verify UL 325 compliance - ask your installer to demonstrate the safety reversal test before signing off
For more detail, see Installation in Denver and Installation in Fort Worth.

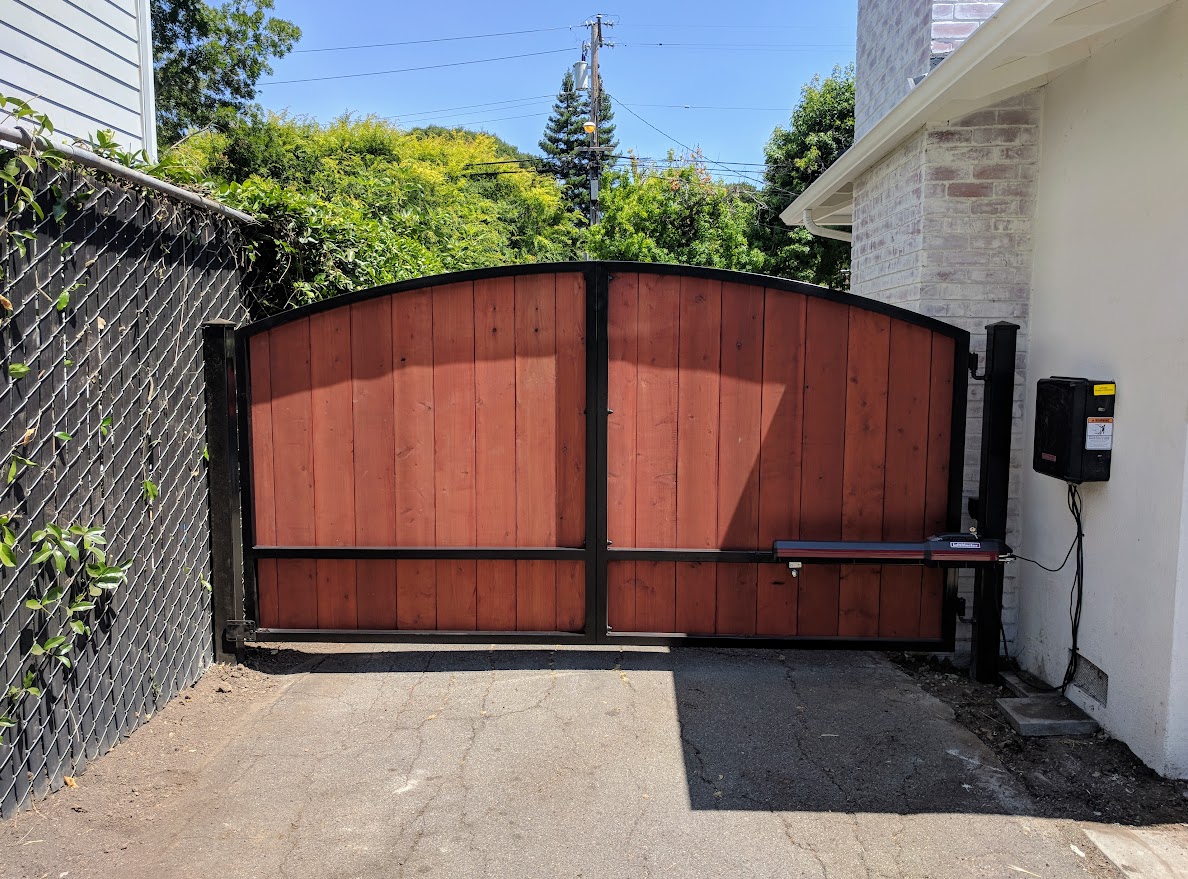

Real-World Project Insights
GateFrames has shipped driveway gates to every state. We've even installed train gates at the Maui airport - from residential driveways to commercial projects.
Every project starts the same: you want a gate. Your driveway has limits. Match the right gate to your property.
What makes a project go well:
- Measure the site. Do not guess.
- Posts sized for your soil
- Opener sized for your gate weight
- Expect 6-14 weeks. That is normal.
Gate Trivia
GateFrames has installed train gates at the Maui airport. From residential driveways to commercial projects.
Recommended Products
Based on this guide, review the most relevant next steps:
See configuration pricing when you're ready to validate dimensions and lead time.
Why GateFrames?
- Nationwide fulfillment process - Projects are delivered across the U.S. with handling options suited to residential sites.
- Instant custom pricing - You can price your gate online right away instead of waiting for a quote.
- 3D model matches your options - You can see your selected setup before buying.
- Install method designed for clarity - Two-person installation path with documented sequencing and support.
- Durable material system - Steel and wood configurations built for long service life with practical maintenance expectations.
- Scope control for custom projects - Complex requests can be quoted with explicit build requirements.
- Support during planning and install - Direct access to help when validating dimensions, hardware, and setup decisions.
- Evidence-led guidance - This blog maps pricing, permitting signals, and installation constraints so buyers can make defensible decisions.
Frequently Asked Questions
Do I need a permit for a driveway gate? Most cities require one. Annoying? Yes. Skippable? No. Check with your local building department.
Can I install a gate myself? Manual gates on flat driveways - yes. Automatic gates need wiring. Usually an electrician and permit. Pro install makes sure it meets safety rules.
