Bi-fold Driveway Gate Installation
Compare costs and what you need for bi-fold gates. Prices are for 2026 and vary by area.
For more detail, see Installation Guide and Bi-fold Automation.
Quick Summary
In this guide:
- Step-by-step installation checklist
- Timeline and permit info
- Specifications and comparison
- Installer tips and next steps
Your Bi-fold Installation Checklist - Step by Step
Here's the step-by-step process.
- Site survey - Measure opening width, grade change, utility locations
- Material & gate type selection - Match to site conditions, budget, and aesthetic goals
- Permit application - Submit to local building department with drawings and operator specs
- Foundation & post installation - Concrete footings below frost line, plumb columns
- Gate hanging & hardware - Install gate panels with weight-rated hinges
- Operator & electrical - Mount motor, run conduit, install GFCI outlet
- Safety devices - Photo eyes, safety edges, emergency manual release
- Commissioning - Program limits, test safety reversal, handover
For more detail, see Bi-fold Cost and Bi-fold Maintenance.
From Order to Operating: Your Steel Bi-fold Gate Timeline
Most projects take 6–14 weeks. Here's what happens when.
| Phase | Duration | Details |
|---|---|---|
| Permit approval | 1-3 weeks | Submit drawings + operator specs to building department |
| Fabrication | 2-3 weeks | Custom fabrication after design approval |
| Shipping | 3-7 days | LTL freight; lift-gate trucks available for easy curbside unloading; kits can be unloaded piece by piece on the truck for lighter handling |
| Site preparation | 1-2 days | Excavation, concrete footings, utility trenching |
| Installation | 1-2 days | Gate hanging, operator mounting, electrical, commissioning |
Total project timeline: Typically 6–14 weeks from initial consultation to operating gate, depending on permit speed and fabrication complexity.
For more detail, see Bi-fold Safety.
Driveway Gate Permit Requirements
Permits are a pain. But skip them and you risk fines, removal, or voided insurance. Not worth it.
Most cities require a permit for automatic gates.
What you usually need:
- Drawing showing where the gate goes
- Gate specs (material, size, weight)
- Opener specs (safety rules)
- Electrical plan
- HOA approval (if you have one)
How long: 1-4 weeks. Historic or coastal areas may add 2-6 weeks.
Specs That Matter: Bi-fold
Bi-fold Gate At a Glance
| Min width | 8 ft |
| Max width | 30 ft |
| Space needed | Little - folds to about 25% of opening |
| Best for | Flat driveways, Tight spaces |
| Opener type | Hydraulic or arm opener |
Bi-fold gates fold like an accordion. A 16-ft gate folds to about 4 ft when open.
Bi-fold Gate: What to Know
Best for: Tight spaces. No room for swing. No room for sliding track. A 16-ft gate folds to 4 ft. Perfect for small lots and courtyards.
⚠️ Watch out: Wind. When partly open, the panels act like a sail. In windy areas (30+ mph), wind can slam the gate. That can damage the hinges.
💡 Pro tip: Bi-fold opens and closes 40-60% faster than swing or sliding. On a busy street? You block traffic for less time. Big plus.
Gate Type Comparison
Each gate type has trade-offs. Space, slope, and width requirements determine the best fit.
| Factor | Swing | Sliding | Cantilever | Bi-fold |
|---|---|---|---|---|
| Space needed | Full arc radius | Side track run | 1.5× width lateral | Minimal |
| Max width | 20 ft | 40 ft | 60 ft | 30 ft |
| Slope tolerance | Poor | Fair | Excellent | Poor |
| Typical speed | 12-18 sec | 8-14 sec | 8-14 sec | 6-10 sec |
| Maintenance | Low | Medium | Low-Medium | Medium |

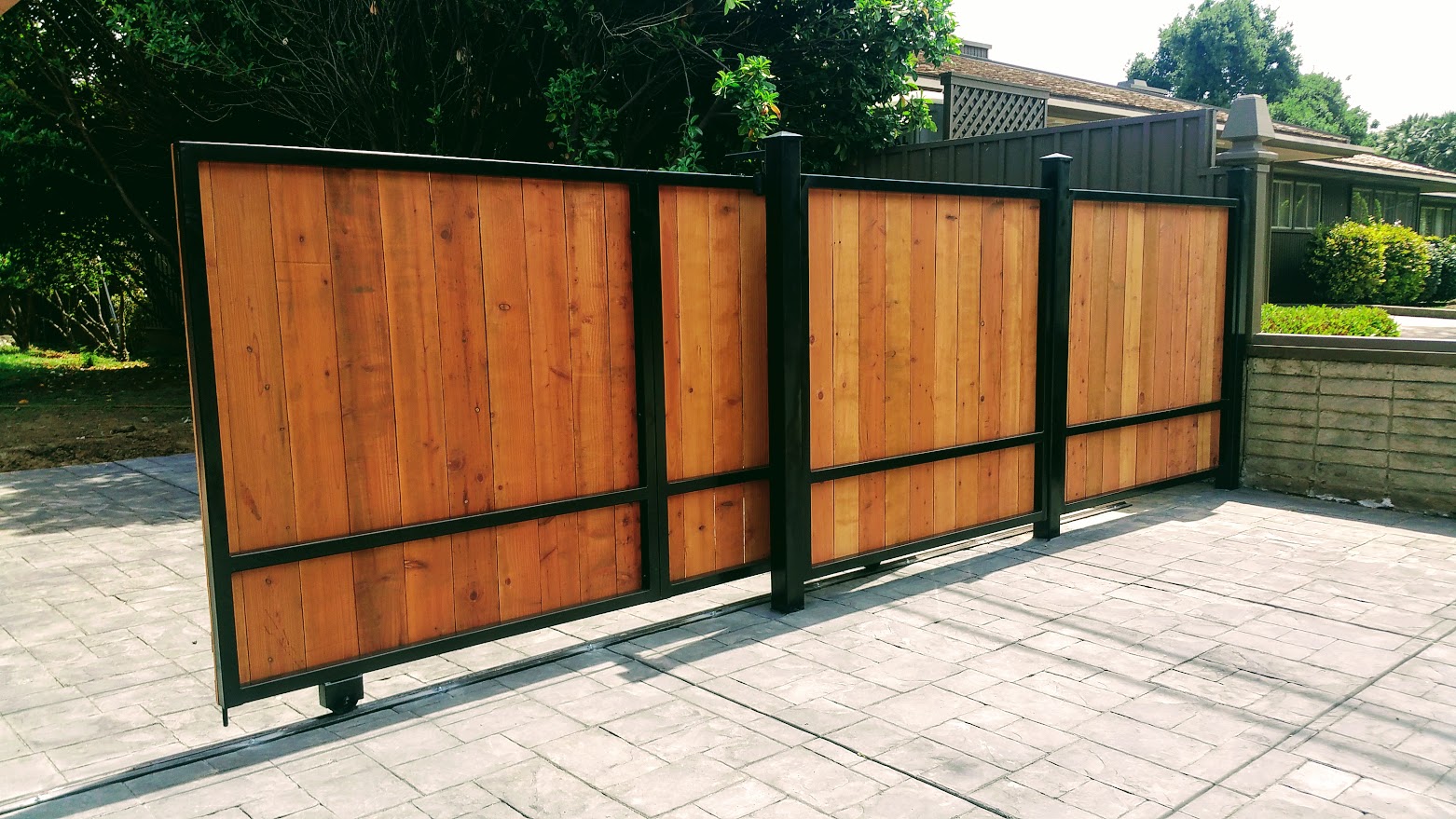

What Installers Wish You Knew (Before You Sign)
Methodology note: These tips come from common real-world install patterns. Always double-check local code, utility clearances, and your driveway layout before you start.
💡 Bi-fold Gate (Aluminum)
Aluminum bi-fold is light. Wind can catch it. Ask your installer to turn on the wind lock. Most openers have one. It keeps the gate from slamming.
Bi-fold Gate Pro Tips
⚠️ Watch out: Wind. When partly open, the panels act like a sail. In windy areas (30+ mph), wind can slam the gate. That can damage the hinges.
💡 Pro tip: Bi-fold opens and closes 40-60% faster than swing or sliding. On a busy street? You block traffic for less time. Big plus.

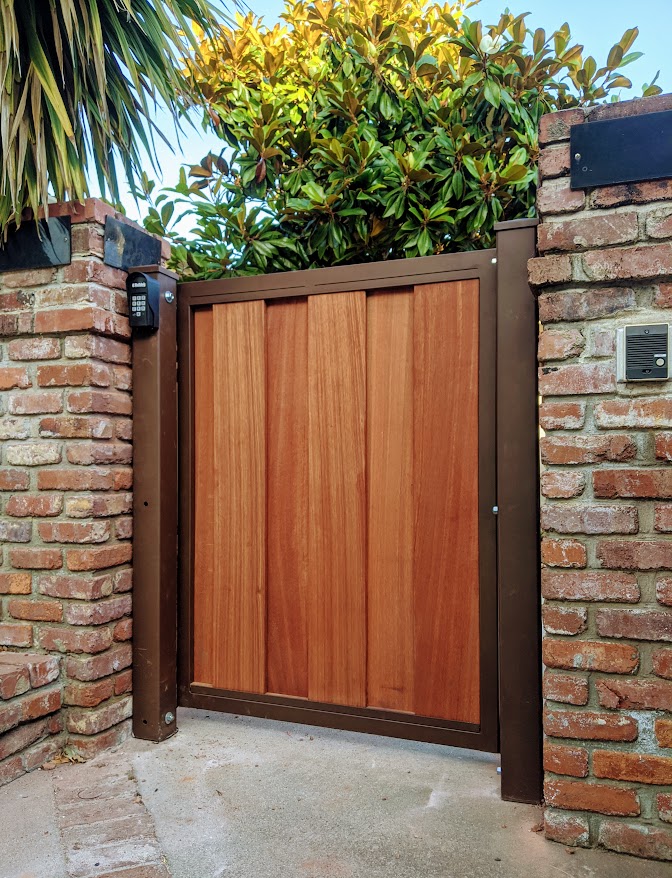

Real-World Project Insights
GateFrames has shipped driveway gates to every state. We've even installed train gates at the Maui airport - from residential driveways to commercial projects.
Every project starts the same: you want a gate. Your driveway has limits. Match the right gate to your property.
What makes a project go well:
- Measure the site. Do not guess.
- Posts sized for your soil
- Opener sized for your gate weight
- Expect 6-14 weeks. That is normal.
Did You Know?
Bi-fold gates fold like an accordion. A 16-ft gate collapses to about 4 ft when open.
Recommended Products
Based on this guide, review the most relevant next steps:
See configuration pricing when you're ready to validate dimensions and lead time.
Why GateFrames?
- Nationwide fulfillment process - Projects are delivered across the U.S. with handling options suited to residential sites.
- Instant custom pricing - You can price your gate online right away instead of waiting for a quote.
- 3D model matches your options - You can see your selected setup before buying.
- Install method designed for clarity - Two-person installation path with documented sequencing and support.
- Durable material system - Steel and wood configurations built for long service life with practical maintenance expectations.
- Scope control for custom projects - Complex requests can be quoted with explicit build requirements.
- Support during planning and install - Direct access to help when validating dimensions, hardware, and setup decisions.
- Evidence-led guidance - This blog maps pricing, permitting signals, and installation constraints so buyers can make defensible decisions.
Frequently Asked Questions
What space does a bi-fold gate need? Little - folds to about 25% of opening. Measure before you buy.
What's the biggest mistake with bi-fold gates? Wind. When partly open, the panels act like a sail.
Do I need a permit for a driveway gate? Most cities require one. Annoying? Yes. Skippable? No. Check with your local building department.
Can I install a gate myself? Manual gates on flat driveways - yes. Automatic gates need wiring. Usually an electrician and permit. Pro install makes sure it meets safety rules.
