Nice AK-11 Wired Gate & Door Keypad, 480 Codes, Cast Aluminum
Hard-wired keypad for gates, doors and strikes: up to 480 codes, two relays and two solid-state outputs in a gasketed cast-aluminum housing.
- Ships next business day
- Exact carrier rate, no markup
- 1-year warranty
Delivery estimate shown at checkout.
Ships free with any of our gates - it rides in the crate
Ships for $8.00–$17.00 · 1–5 days in transit
Specifications
19 specifications
| Codes | |
|---|---|
| Entry codes | Up to 480 |
| Code length | 1–6 digits (default 4) |
| Per-code action | Relay 1, 2 or both |
| Outputs | |
| Relay 1 | Form C, 5 A |
| Relay 2 | Form C, 1 A |
| Solid-state outputs | 2 × 100 mA |
| Relay time | 0–60 s or toggle |
| Inputs | |
| Inputs | Door sense/inhibit, pushbutton |
| Power | |
| Input voltage | 12–24 V AC or DC |
| Current draw | 10 mA typ, 150 mA max |
| Code memory | EEPROM, no battery |
| Security | |
| Lockout | 60 s after 2–7 bad codes |
| Anti-passback | Timed, 1–4 min |
| Build | |
| Courtesy light | Off, on or 1–4 min |
| Housing | Cast aluminum, gasketed |
| Dimensions (W×H×D) | 4 × 5.5 × 3 in |
| Operating temperature | −22°F to 149°F |
| Warranty | |
| Warranty | 1 year (Nice) |
| Fit | |
| Operator brand | Any |
Gates built in our San Jose shop and installed on real driveways.
Questions & Answers
Is the ACP00748 the same as the Linear AK-11?
Is the ACP00748 the same as the Linear AK-11?
Yes. ACP00748 is Nice/Linear's order number for the AK-11 Exterior Digital Keypad.
Will it work with my gate opener?
Will it work with my gate opener?
Almost certainly, if the opener has a dry-contact OPEN input. Relay 1's common and normally-open contacts wire to those terminals, and the keypad can run on the operator's 12–24 V auxiliary power. It isn't limited to one brand.
Can it open a door strike or maglock too?
Can it open a door strike or maglock too?
Yes. The manual shows low-voltage electric strike wiring, and Linear lists magnetic and solenoid locks as typical uses. With two relays, one keypad can run a gate and a door, and each code can be set to open either one or both.
How many codes does it hold, and how long are they?
How many codes does it hold, and how long are they?
Up to 480 codes of 1 to 6 digits. All codes share one length setting (default 4), which you should set before programming any codes.
How is it powered?
How is it powered?
12–24 V AC or DC, drawing 10 mA typically and 150 mA at most, from the gate operator or a separate supply. An AC supply must be isolated from the device the keypad controls. It has no batteries.
Are codes lost in a power outage?
Are codes lost in a power outage?
No. EEPROM memory keeps every code and setting without power.
Is it wireless?
Is it wireless?
No. The AK-11 is wired only and has no radio. Linear's AKR-1 is the version with a built-in 318 MHz radio; the F310 is a lower-cost keypad that can run wireless with Linear Pro / GTO openers.
Does it have a Wiegand output for an access-control panel?
Does it have a Wiegand output for an access-control panel?
No. Linear's documentation lists no Wiegand interface. It's a stand-alone keypad with two relays and two solid-state outputs.
What happens after wrong codes?
What happens after wrong codes?
After 2 to 7 wrong codes (you choose; default 3) it locks out for 60 seconds and the yellow LED lights. Timed anti-passback (1–4 minutes) is also available.
Is it lit at night?
Is it lit at night?
Yes. The courtesy light can be off, always on, or on for 1–4 minutes after a key press (default 2). It uses an incandescent bulb.
How do I program it?
How do I program it?
Everything is programmed at the keypad. Enter programming with # 9 # and the 6-digit master code (default 123456). The full sequences are in the manual under Documents.
Can it be mounted outdoors, and how?
Can it be mounted outdoors, and how?

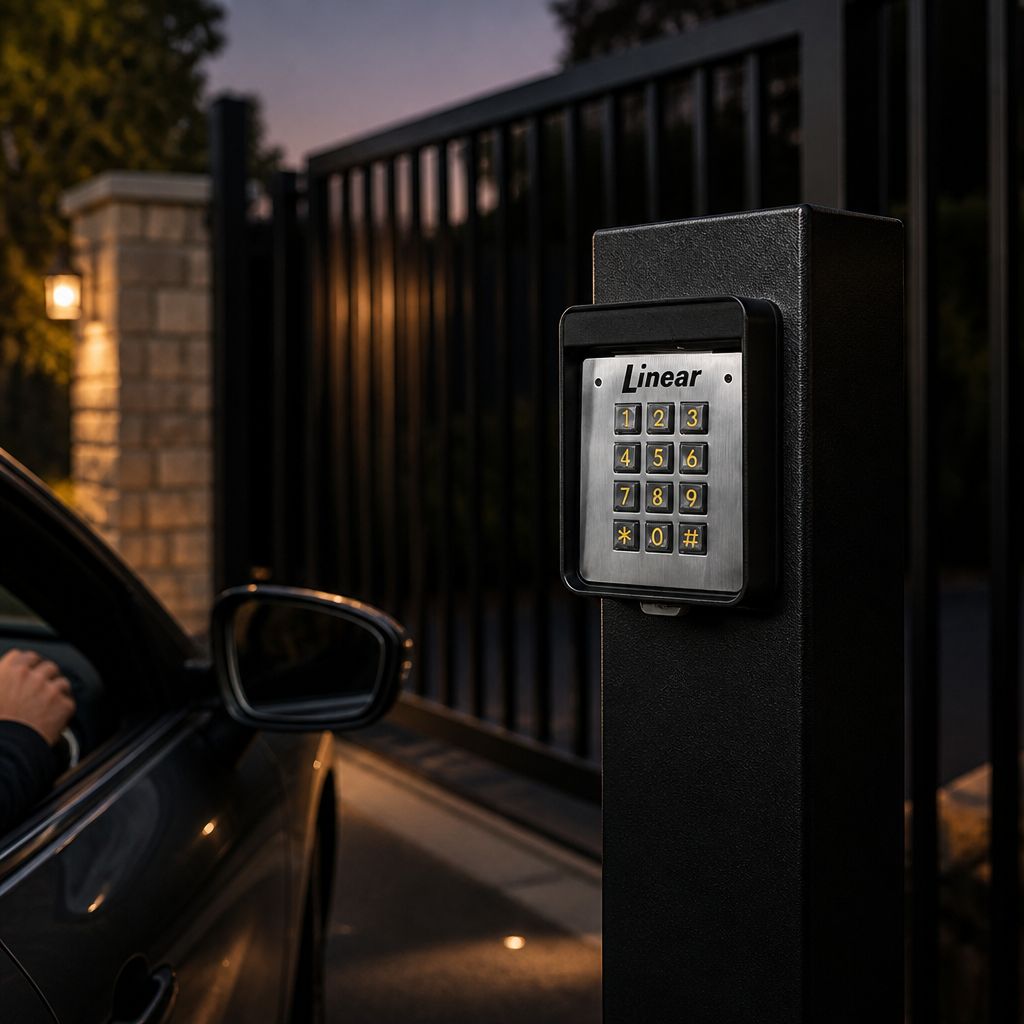

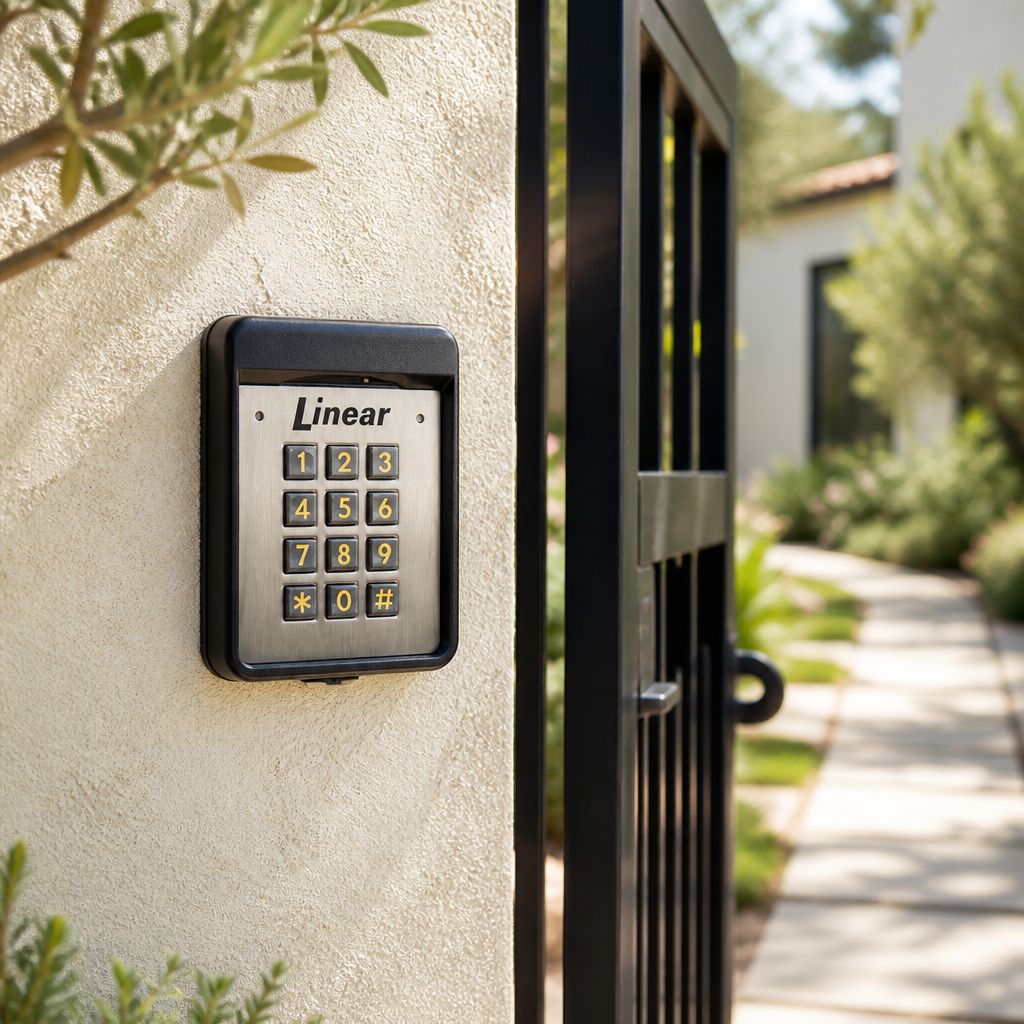

Yes. The cast-aluminum housing has a neoprene gasket and is rated −22°F to 149°F at 5–95% humidity. It mounts on a standard pedestal with 4 security bolts and lock nuts, or on a wall. A keylock secures the keypad to its backplate.
What's the warranty?
What's the warranty?
Nice lists a 12-month warranty for this keypad.
About
- Up to 480 codes
- 2 relays + 2 solid-state outputs
- Weather-sealed cast aluminum
The Linear AK-11 (Nice order number ACP00748) is a hard-wired exterior keypad built for entrances that see real traffic. Each code can trigger either of two relays or both: a driveway gate on one, a pedestrian door strike on the other.
The cast-aluminum housing is gasketed against weather, and codes live in EEPROM, so a power cut never erases them.
What's in the box
- AK-11 keypad with its mounting backplate and keylock (the keylock secures the keypad to the backplate)
What you'll still need
- 12–24 V AC or DC power: most installs use the gate operator's auxiliary or radio power terminals. An AC supply must be isolated from the device the keypad controls.
- Wire: 18 AWG for power and earth ground (up to 500 ft), 22 AWG or heavier for the other connections. A gate typically needs 4 conductors (2 power, 2 control).
- An earth-ground connection for static protection
- A mounting spot: a pedestal (4 security bolts and lock nuts) or a wall (wedge or molly anchors in concrete)
- For a door: a low-voltage electric strike or maglock and its power supply
Will it work with my opener?
The AK-11 isn't tied to a brand. Its Relay 1 common and normally-open contacts wire to any gate operator's OPEN (dry-contact) terminals, so it works with Linear Pro / GTO / Nice, LiftMaster, Mighty Mule and other operators that have such an input. It also drives low-voltage electric strikes, maglocks and solenoid locks, and its two solid-state outputs (100 mA) can signal an alarm panel or a light.
- No radio and no Wiegand interface: it's a stand-alone wired keypad.
Two relays, four outputs
Relay 1
Form C, 5 A: the main gate or door.
Relay 2
Form C, 1 A: a second gate, door or light.
Outputs 3 and 4
Open collector, 100 mA: forced entry, door ajar, lockout, alarm shunt, request-to-enter or keypad active.
Each relay runs 0–60 s (default 2 s) or toggles on and off.
Security and programming
- Codes of 1–6 digits (one length for all; set it before adding codes)
- Programming at the keypad with a 6-digit master code (default 123456, change it first)
- Lockout for 60 s after 2–7 wrong codes (default 3), shown by a yellow LED
- Timed anti-passback (1–4 min) and door-sense or inhibit input
- Courtesy light: off, always on, or for 1–4 minutes after a key press; a beeper confirms each key
How it compares
| Keypad | Codes | Connection |
|---|---|---|
| AK-11 | Up to 480 | Wired, 2 relays |
| F310 | 25 × 4 digits | 318 MHz or wired |

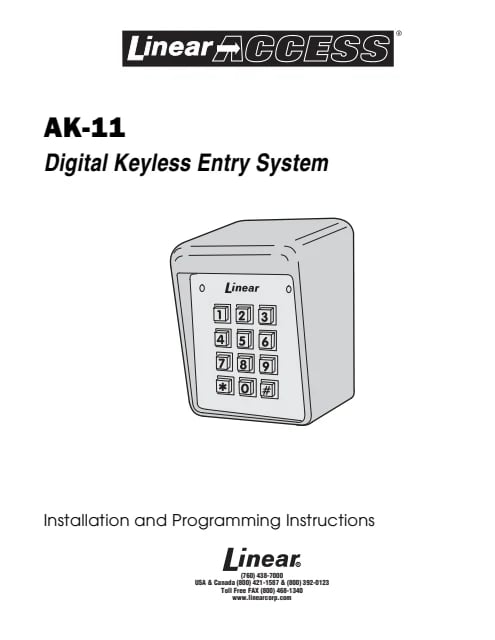

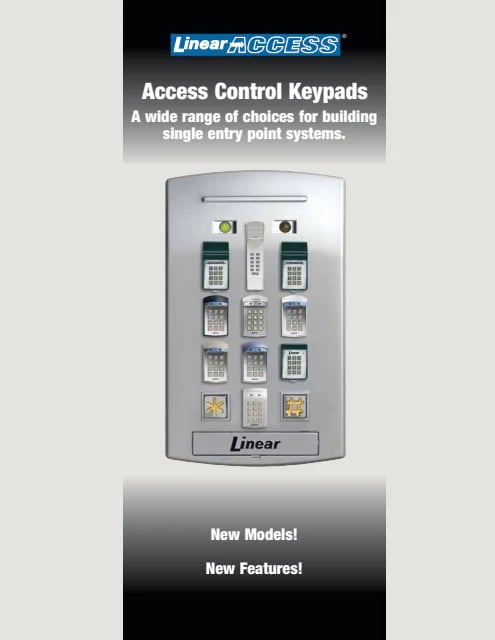

Nice lists a 12-month warranty for this keypad. The installation manual and Linear's spec flyer are in Documents below.
