D&D Technologies LokkLatch REGULAR S3 Gate Latch, Key-Lockable, Latch Only
Key-lockable gravity latch for square-post home and garden gates. Polymer body, marine-grade stainless parts, adjustable after install, lifetime warranty.
Order within for ship estimate Delivery ·
- Ships next business day
- Shipping from $10.00
Arrives
- Key-lockable gravity latch
- Rust-free polymer + stainless
- D&D lifetime warranty
About

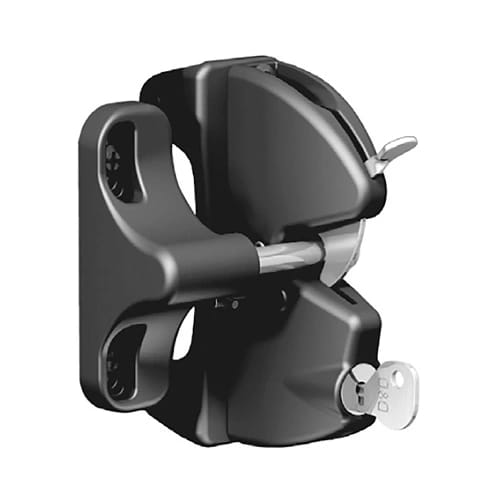

The D&D LokkLatch REGULAR S3 is a key-lockable gravity latch for square-post swing gates around the home and garden. Close the gate and it latches; turn the key and it's locked.
Locks with a key

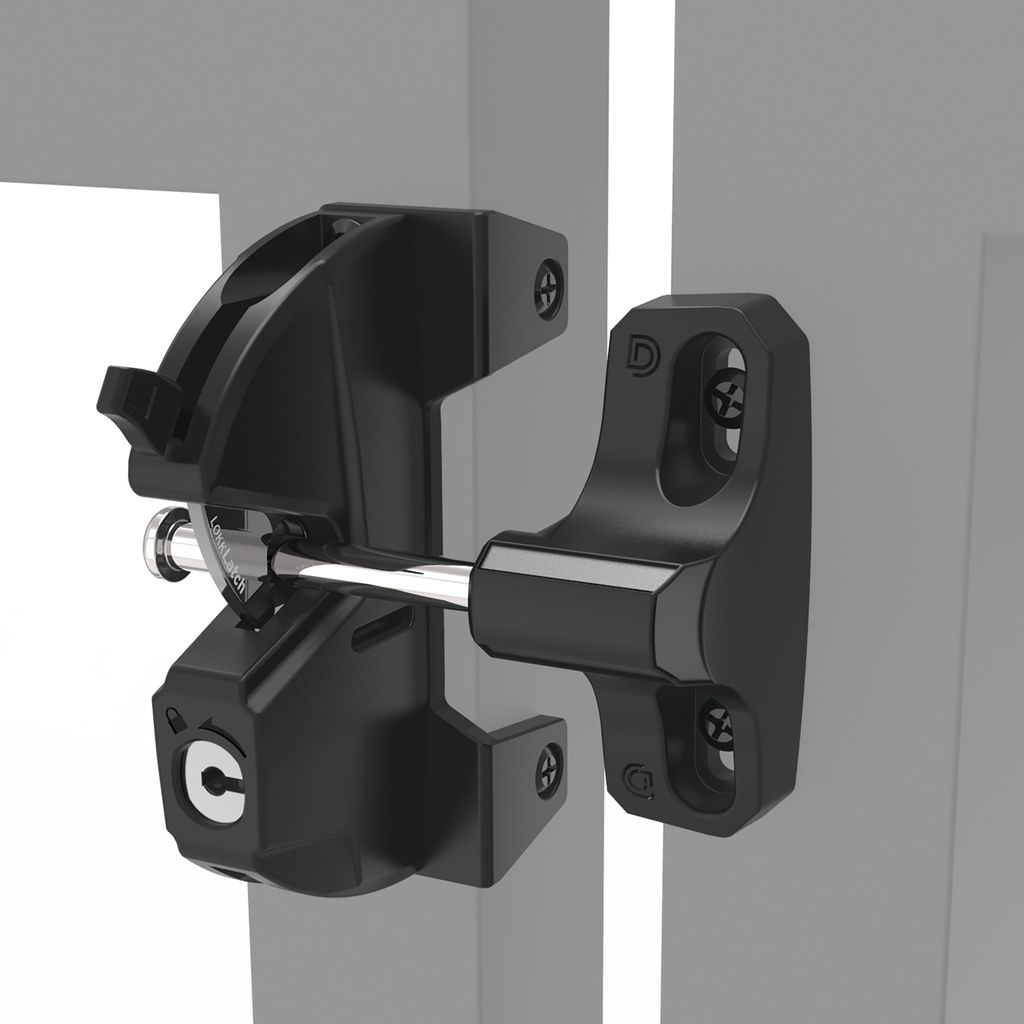

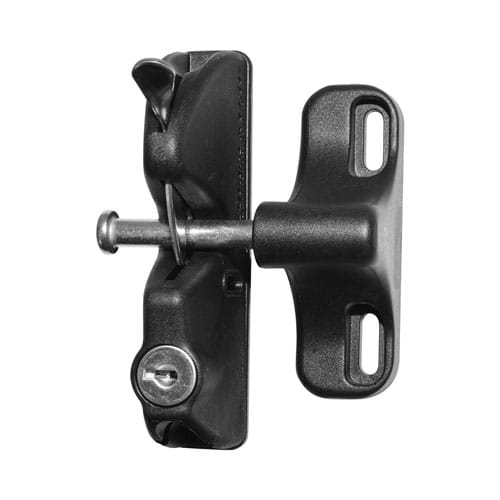

The latch body mounts on the fence post and a striker bolt on the gate. No padlocks or chains on a side, yard or garden gate.
Won't rust or stain
Engineered polymer body with marine-grade stainless steel parts, for metal, wood or vinyl gates, left or right hand.
Adjusts after fitting
Trim it vertically and horizontally once it's mounted, so a gate that settles still latches.
What's in the box
- LokkLatch latch body with key lock and keys
- Striker body with striker bolt
- Post bracket(s)
- Self-drilling screws
What you'll still need
- A drill, a 5/32 in (4 mm) bit for pre-drilling metal, and a #2 Phillips driver
- A square post of at least 1 in and a post-to-gate gap near 3/4 in
- To open and lock from the street side too: the External Access Button kit (21-LOKK2-SET)
LokkLatch versions
| Version | Operates from | Lock |
|---|---|---|
| REGULAR, latch only | Latch side | Key, keyed alike |
| REGULAR + EAB | Both sides | Key, keyed alike |
| DELUXE | Both sides | Rekeyable 6-pin |

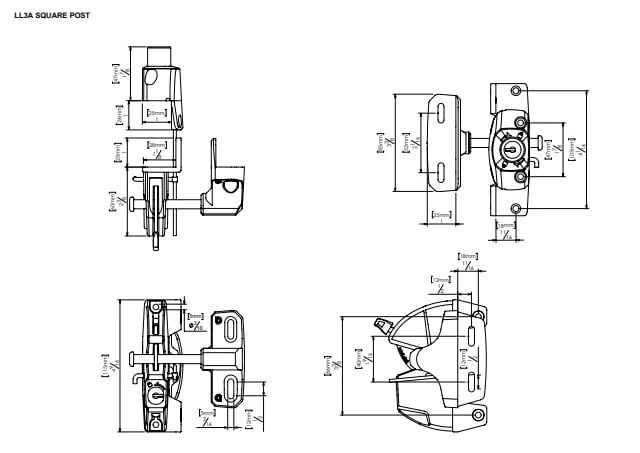

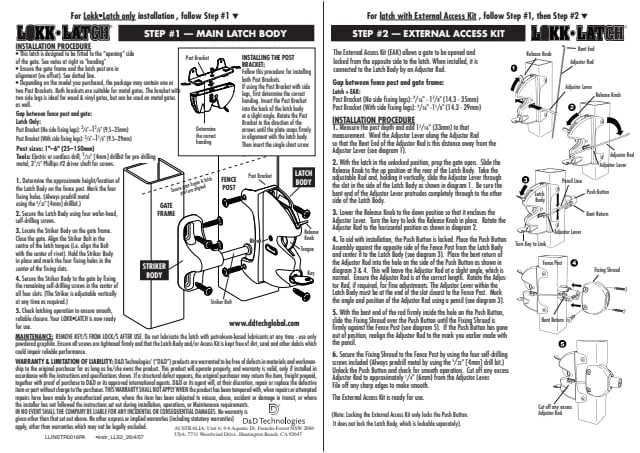

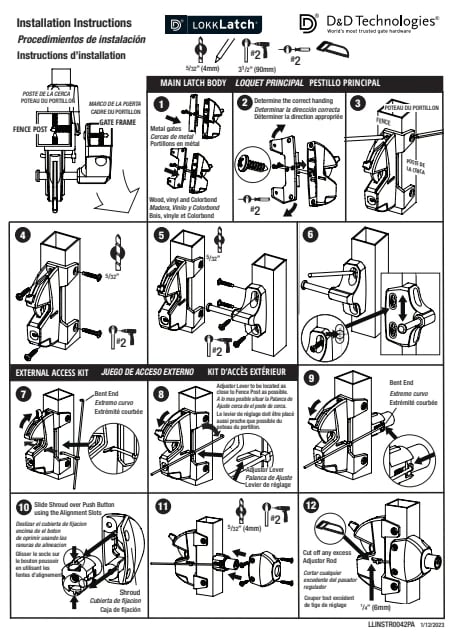

Made in Australia by D&D Technologies (part of ASSA ABLOY), sold by King Metals as item 21-LOKK. Specifications from D&D Technologies and King Metals. D&D's installation instructions, dimension drawing and install video are below.
Specifications
| Model | |
|---|---|
| Model | LokkLatch REGULAR S3 |
| D&D code | LL3AL |
| King Metals item | 21-LOKK |
| Fit | |
| Post shape | Square-to-square |
| Minimum post size | 1 in |
| Ideal gate gap | 3/4 in |
| Gate materials | Metal, wood, vinyl |
| Handing | Left or right |
| Lock | |
| Lock | Key, non-rekeyable |
| Keying | Keyed alike |
| Build | |
| Body | Engineered polymer |
| Components | Marine-grade stainless |
| Adjustment | Vertical + horizontal |
| Color | Black |
| Install | |
| Fixing | Screws, included |
| Pilot drill (metal) | 5/32 in |
| Use | |
| Rating | General purpose |
| Warranty | |
| Warranty | Limited lifetime |
| Made in | Australia |
Frequently asked questions
Which LokkLatch is this?
The LokkLatch REGULAR Series 3, latch only (D&D code LL3AL, black), sold by King Metals as 21-LOKK. It locks and opens from the latch side of the gate. King Metals' own text still says Series 2; its item title and D&D's current range are Series 3.
Can I open it from the other side of the gate?
Not with the latch alone. D&D's External Access Button (EAB) adds a push button on the opposite side, linked to the latch by a rod. The latch plus EAB is our 21-LOKK2-SET listing.
Can I use it on a pool gate?
No. D&D rates the LokkLatch REGULAR as a general-purpose, non-safety latch for home and garden gates. Pool barriers need a self-latching safety latch mounted out of a child's reach; D&D's MagnaLatch range is built for that.
What gates and posts does it fit?
Square-to-square swing gates on metal, wood or vinyl, with a minimum post size of 1 in. It works on left- or right-hand gates.
How big a gap between post and gate does it need?
D&D's ideal gap is 3/4 in. The latch adjusts vertically and horizontally after it's mounted, so small misalignment or a gate that settles can be trimmed out.
Are the locks keyed alike?
Yes. King Metals notes that standard LokkLatches are keyed alike, so several latches can share one key. D&D lists the REGULAR lock as non-rekeyable; if you need locks keyed to your house, look at the LokkLatch DELUXE.
Will it rust?
The body is engineered polymer and the working parts are marine-grade stainless steel, so it won't rust or stain. D&D says to lubricate only with powdered graphite, never petroleum-based oil, and to keep sand and debris out.
What tools do I need?
A drill, a 5/32 in (4 mm) bit to pre-drill metal, and a #2 Phillips driver. The self-drilling screws are included. D&D's instructions and install video are on this page.
What is the warranty?
D&D Technologies limited lifetime warranty: free of defects in materials and workmanship for the original purchaser as long as they own it, when installed to D&D's instructions. D&D repairs or replaces at its discretion; misuse, tampering and transit damage are excluded.
Can I get extra keys?
King Metals sells an extra key for the 21-LOKK separately; it is not part of this listing.
