D&D Technologies

D&D Technologies LokkLatch REGULAR S3 Gate Latch + External Access Button Kit, Key-Lockable

Key-lockable gravity latch plus the push-button kit that opens it from the other side of the post. Rust-free polymer and stainless, D&D lifetime warranty.

$65
Details
  • Ships next business day
  • Exact carrier rate, no markup
  • Lifetime limited warranty

Delivery estimate shown at checkout.

Ships free with any of our gates - it rides in the crate

Ships for $9.00–$18.00 · 1–5 days in transit

Specifications

20 specifications
Model
ModelLokkLatch REGULAR S3+EAB
D&D codeLL3ABL
King Metals item21-LOKK2-SET
Kit contentsLatch + access button
Fit
Post shapeSquare-to-square
Minimum post size1 in
Ideal gate gap3/4 in
Gate materialsMetal, wood, vinyl
HandingLeft or right
Lock
LockKey, non-rekeyable
KeyingKeyed alike
Build
BodyEngineered polymer
ComponentsMarine-grade stainless
AdjustmentVertical + horizontal
ColorBlack
Install
FixingScrews, included
Pilot drill (metal)5/32 in
Use
RatingGeneral purpose
Warranty
WarrantyLimited lifetime
Made inAustralia
Real Installations

Gates built in our San Jose shop and installed on real driveways.

Arched black steel center-opening driveway gate with puppy pickets
Arched steel with puppy pickets
Center opening · Black steel frame
Black steel driveway gate with horizontal ironwood boards attached to the face of the frame
Horizontal ironwood boards
Face-mounted wood · Black steel frame
Arched black steel double driveway gate with open vertical pickets
Arched steel with single pickets
Center opening · Black steel frame
Arched black steel driveway gate with face-mounted vertical ironwood boards and spear-point finials
Vertical ironwood with finials
Arched top · Spear-point finials
Black steel center-opening driveway gate with puppy pickets and an arched top
Puppy pickets with an arched top
Center opening · Black steel frame
Black steel center-opening driveway gate with face-mounted horizontal ironwood boards for privacy
Horizontal ironwood privacy gate
Face-mounted wood · Center opening

Questions & Answers

What exactly is in this kit?

The LokkLatch REGULAR Series 3 latch (with striker) and the External Access Button kit: D&D code LL3ABL, black, sold by King Metals as 21-LOKK2-SET. Fasteners are included.

How does the outside button work?

The push button mounts on the opposite side of the fence post from the latch body and connects to it by an adjustable rod. Pressing it releases the latch, so the gate opens from the street side.

Does locking the outside button lock the gate?

No. Locking the External Access Button locks only the button. The main latch has its own key lock; lock it to secure the gate. D&D's instructions say this explicitly.

Do I need to cut the rod?

Usually. D&D's instructions have you set the rod to your post depth, then cut off the excess about 1/4 in (6 mm) past the adjustor lever and file the end smooth.

Can I use it on a pool gate?

No. D&D rates the LokkLatch REGULAR as a general-purpose, non-safety latch for home and garden gates. Pool barriers need a self-latching safety latch mounted out of a child's reach; D&D's MagnaLatch range is built for that.

What gates and posts does it fit?

Square-to-square swing gates on metal, wood or vinyl, with a minimum post size of 1 in. It works on left- or right-hand gates.

How big a gap between post and gate does it need?

D&D's ideal gap is 3/4 in. The latch adjusts vertically and horizontally after it's mounted, so small misalignment or a gate that settles can be trimmed out.

Are the locks keyed alike?

Yes. King Metals notes that standard LokkLatches are keyed alike, so several latches can share one key. D&D lists the REGULAR lock as non-rekeyable; if you need locks keyed to your house, look at the LokkLatch DELUXE.

Will it rust?

The body is engineered polymer and the working parts are marine-grade stainless steel, so it won't rust or stain. D&D says to lubricate only with powdered graphite, never petroleum-based oil, and to keep sand and debris out.

What tools do I need?

A drill, a 5/32 in (4 mm) bit to pre-drill metal, and a #2 Phillips driver. The self-drilling screws are included. D&D's instructions and install video are on this page.

What is the warranty?

D&D Technologies limited lifetime warranty: free of defects in materials and workmanship for the original purchaser as long as they own it, when installed to D&D's instructions. D&D repairs or replaces at its discretion; misuse, tampering and transit damage are excluded.

About

  • Opens from both sides
  • Key-lockable latch and button
  • D&D lifetime warranty

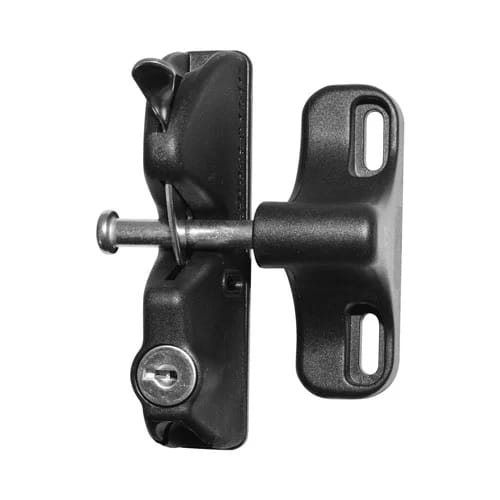

This kit pairs the D&D LokkLatch REGULAR S3 key-lockable gate latch with its External Access Button (EAB), so a square-post home or garden gate opens from both sides of the fence.

1 inminimum post
3/4 inideal gate gap
2key locks
LifetimeD&D warranty

Opens from both sides

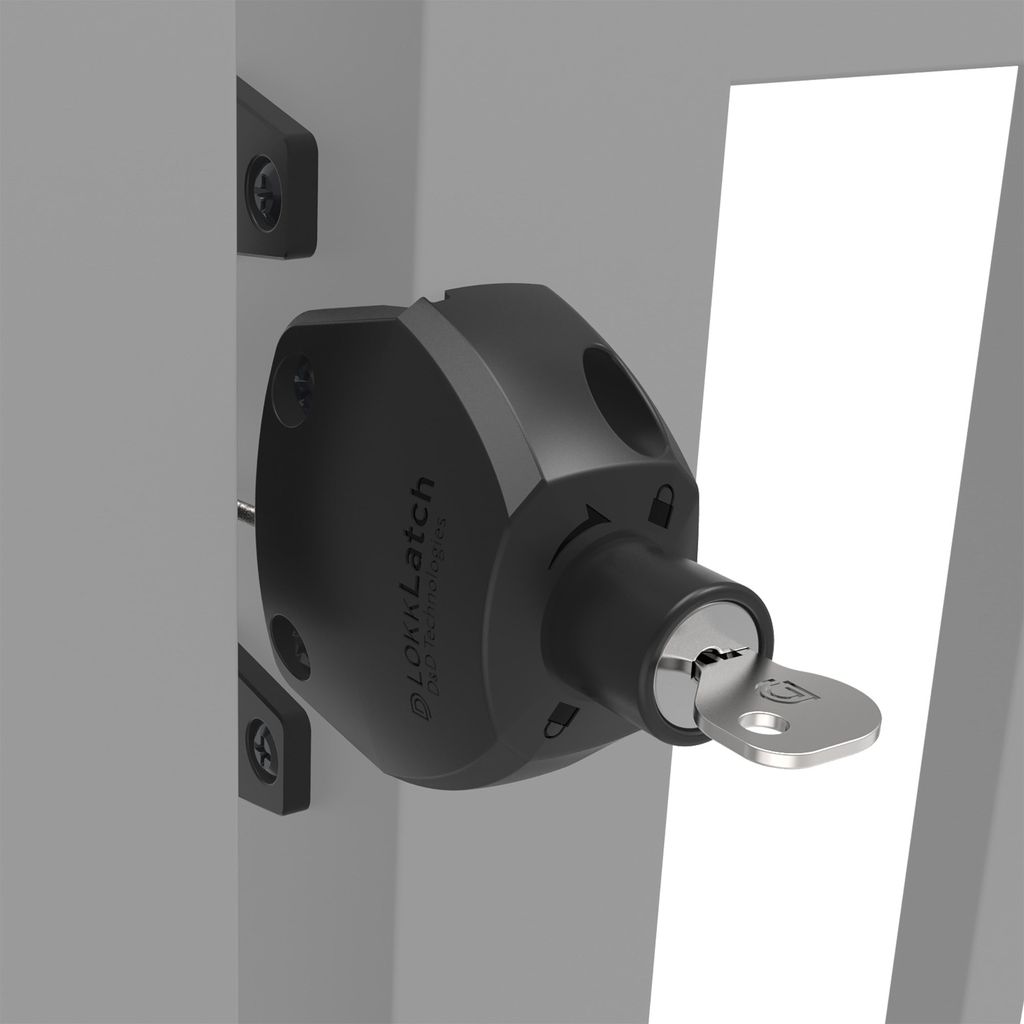

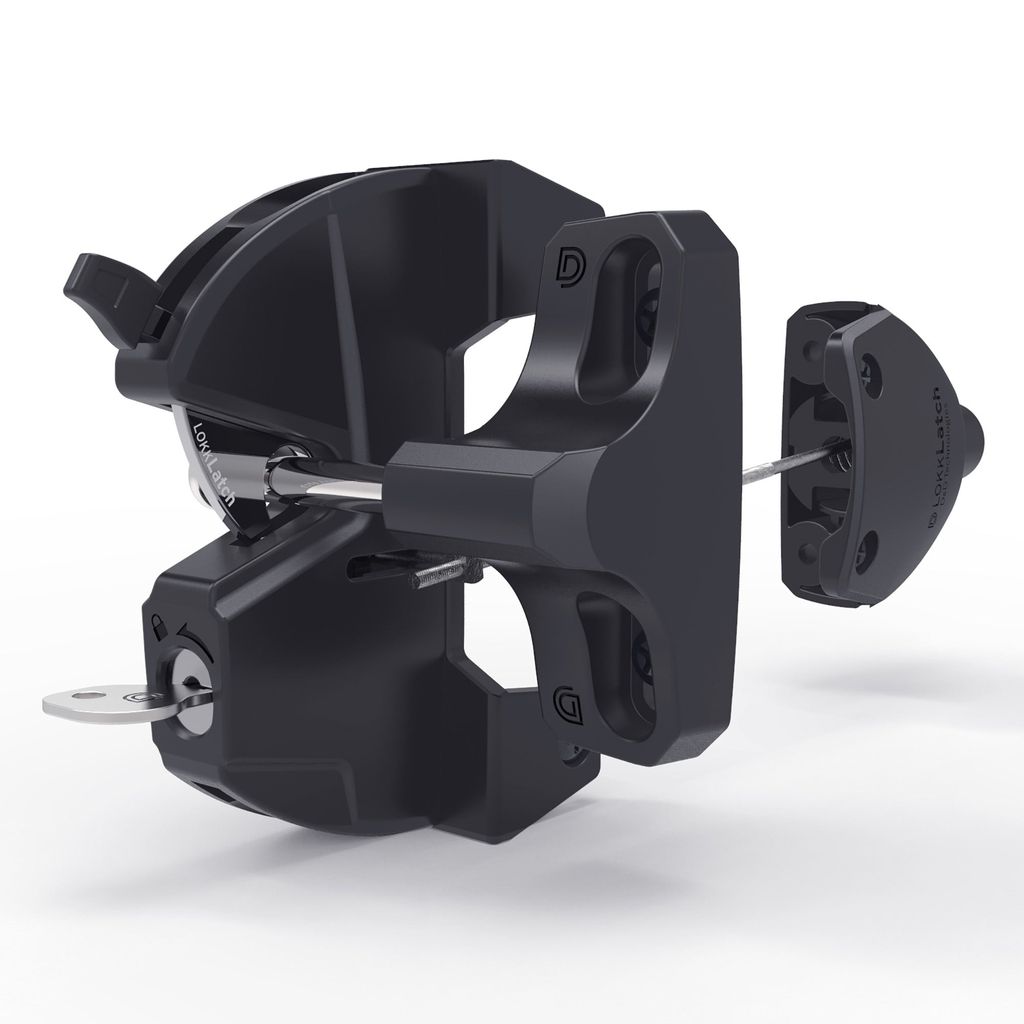

The latch body mounts on the post; the push button mounts on the opposite side of the post and works the latch through an adjustable connecting rod.

Won't rust

Engineered polymer with marine-grade stainless steel parts, for metal, wood or vinyl gates, left or right hand.

Adjusts after fitting

The latch adjusts vertically and horizontally once it's mounted, so small misalignment or a gate that settles can be trimmed out.

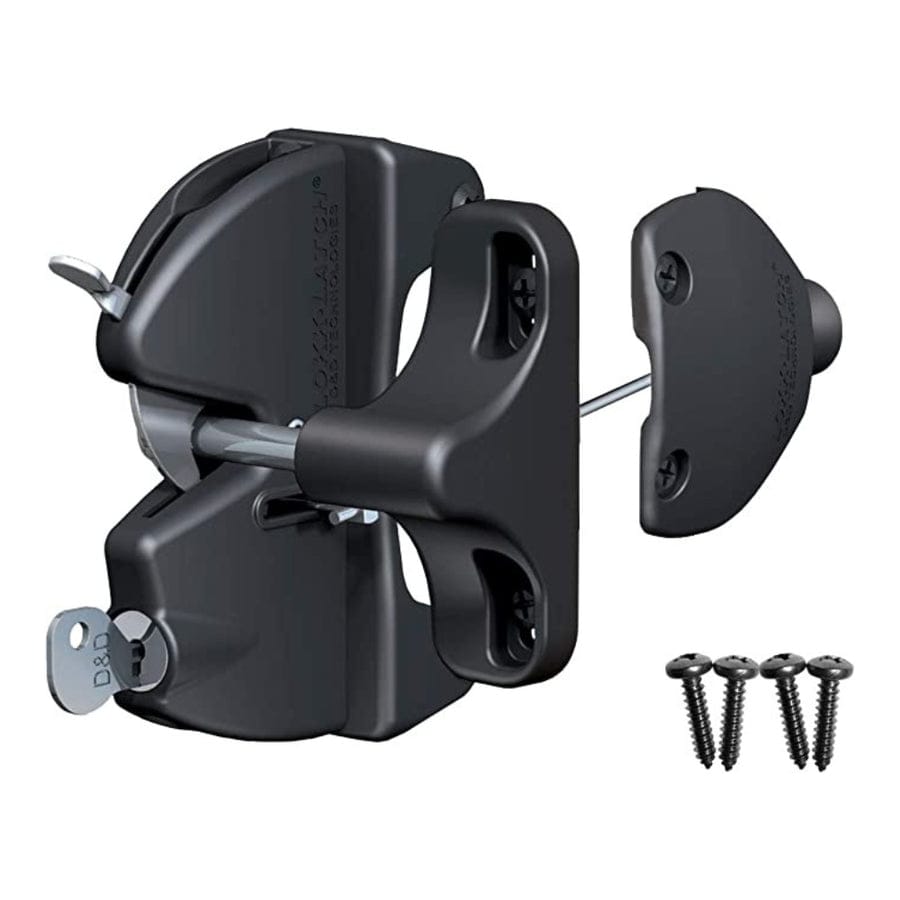

What's in the box

  • LokkLatch latch body with key lock, and a striker body with striker bolt

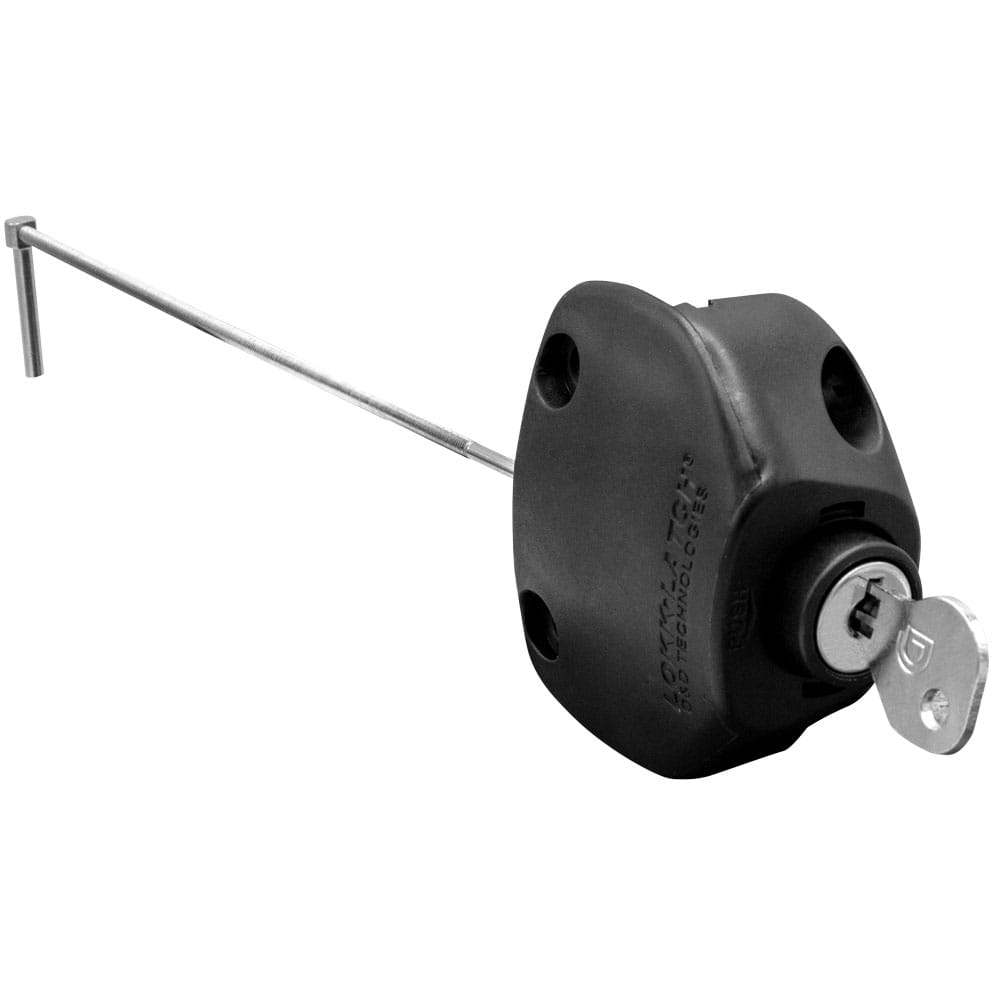

  • External Access Button with its own key lock, fixing shroud and adjustor rod
  • Post bracket(s)
  • Self-drilling screws

What you'll still need

  • A drill, a 5/32 in (4 mm) bit for pre-drilling metal, and a #2 Phillips driver
  • A hacksaw or bolt cutter to trim the adjustor rod to length
  • A square post of at least 1 in and a post-to-gate gap near 3/4 in

LokkLatch versions

VersionOperates fromLock
REGULAR, latch onlyLatch sideKey, keyed alike
REGULAR + EABBoth sidesKey, keyed alike
DELUXEBoth sidesRekeyable 6-pin

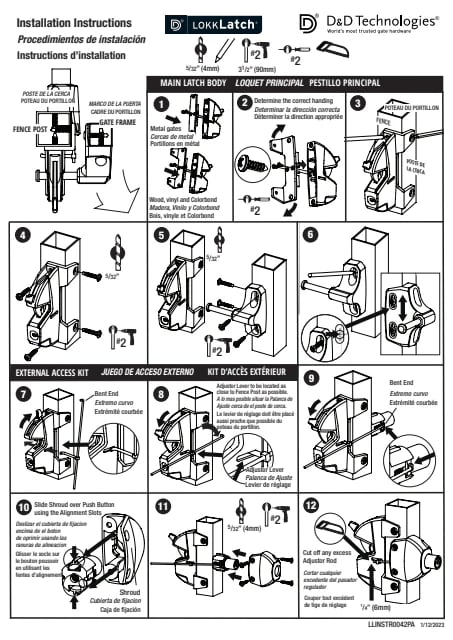

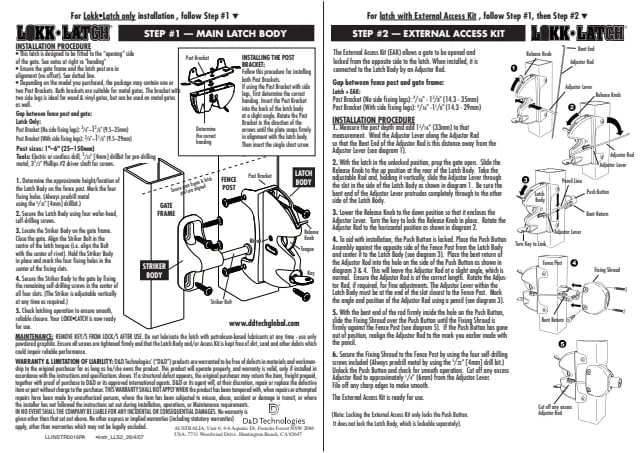

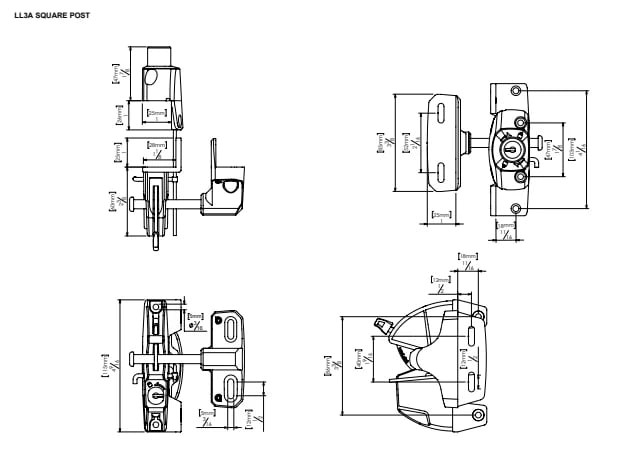

Made in Australia by D&D Technologies (part of ASSA ABLOY), sold by King Metals as 21-LOKK2-SET. Specifications from D&D Technologies and King Metals. D&D's installation instructions, dimension drawing and install video are below.

Buy with confidence

30-day returns

Return it within 30 days of delivery. Change-of-mind returns carry a 25% restocking fee; damage and defects are always on us.

Full return policy

Lifetime limited warranty

D&D Technologies limited lifetime warranty: free of defects in materials and workmanship for the original purchaser as long as they own it, when installed to D&D's instructions. D&D repairs or replaces at its discretion; misuse, tampering and transit damage are excluded.

Warranty details

  • Priced live for your ZIP by USPS, UPS and FedEx. Ships free in the crate when ordered with a gate from the same seller.
  • Free tech support
  • Nationwide shipping
  • Questions? Call (408) 260-5145

Documents 2
