DoorBird D2101KV Protective Hood, V4A Stainless Steel Weather Shield
Brushed V4A stainless hood that shelters a surface-mounted DoorBird D2101KV from above and both sides. Requires the surface-mount housing.
Order within for ship estimate Delivery ·
- Ships next business day
- Shipping from $15.00
Arrives
- Shelter from above and both sides
- V4A brushed stainless steel
- For surface-mounted D2101KV
About

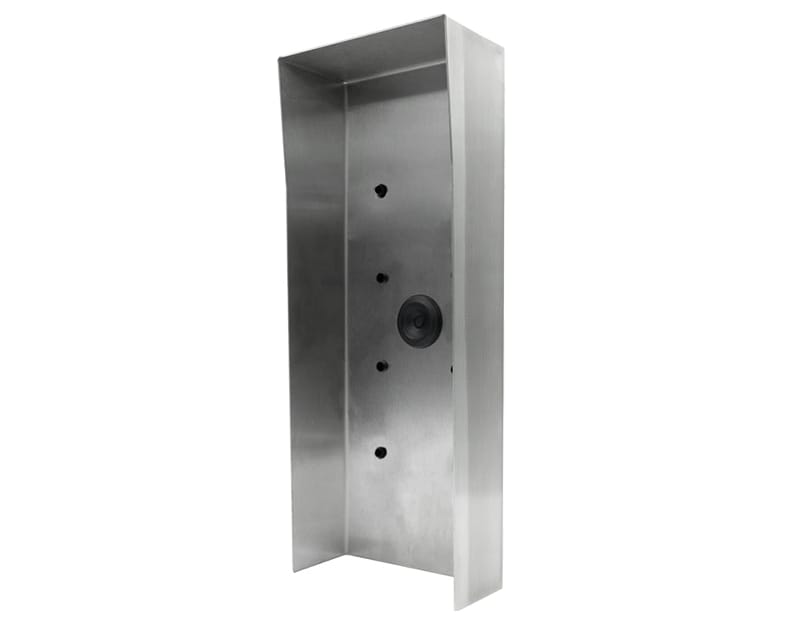

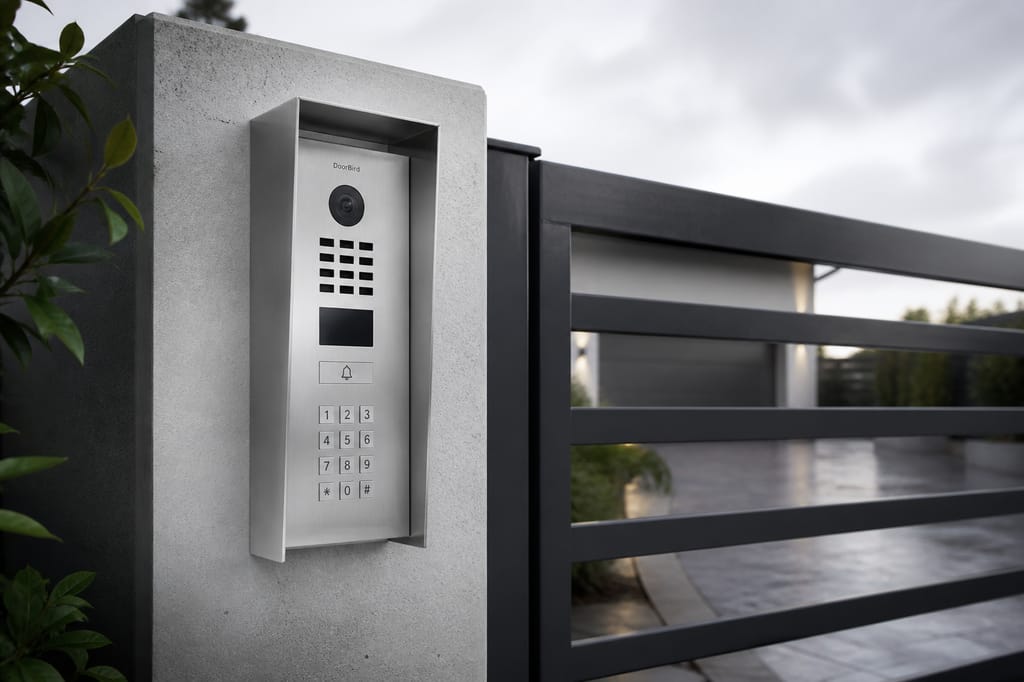

The DoorBird protective hood shelters a surface-mounted D2101KV from above and on both sides, in the same brushed V4A stainless steel as DoorBird's surface housing. It suits exposed gate pillars and walls with no porch roof overhead.
Fits these DoorBird door stations
- D2101KV
- D2102FV Fingerprint 50
- D2102FV EKEY
- D2101FV EKEY sLine
- D2102FV EKEY sLine
- D2201KV
- D2202FV Fingerprint 50
- D2201FV EKEY sLine
- D2202FV EKEY sLine
Per DoorBird's shop page, in each case with the matching surface-mount housing.
- D2101V and D2201V: they use a different hood
- Any flush-mounted station
What's in the box
- Protective hood in brushed V4A stainless steel
DoorBird doesn't publish a fuller packing list.
What you'll still need
- The D2101KV surface-mount housing, sold separately
- A compatible DoorBird door station, such as the D2101KV, sold separately
- Wall anchors and screws suited to your wall or pillar
Installation notes
- The hood's back panel has a Ø31 mm cable hole and fixing holes that match the surface housing's pattern.
- The hood shelters the station from rain and overhead sun, but DoorBird still advises keeping the camera out of direct sunlight: sun damage isn't covered by the warranty.
- Clean the stainless with water and a soft cloth; avoid steel wool, bleach and chloride cleaners.
Hood vs surface housing
| Part | H × W | Depth |
|---|---|---|
| Hood | 358.5 × 136 mm | 72.5 → 59.5 mm |
| Surface housing | 349 × 126 mm | 45.75 mm |

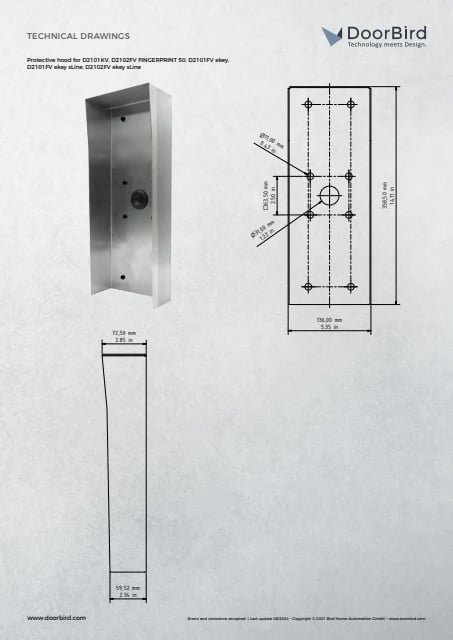

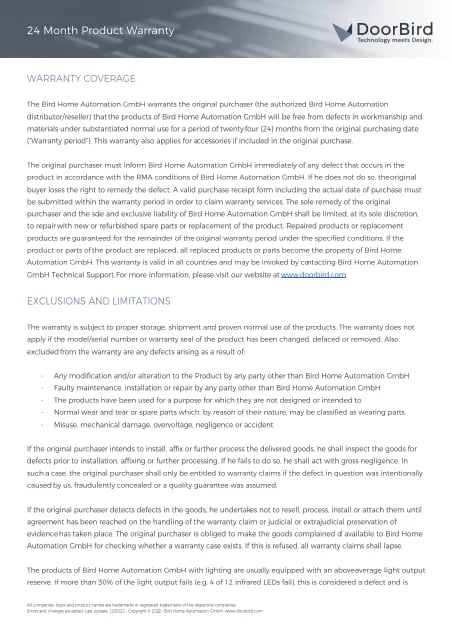

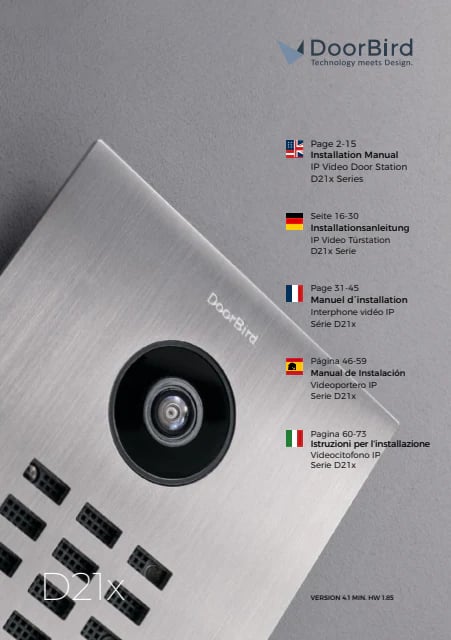

DoorBird covers it for 24 months from purchase. The drawing, the D21x installation manual and the warranty terms are in Documents below.

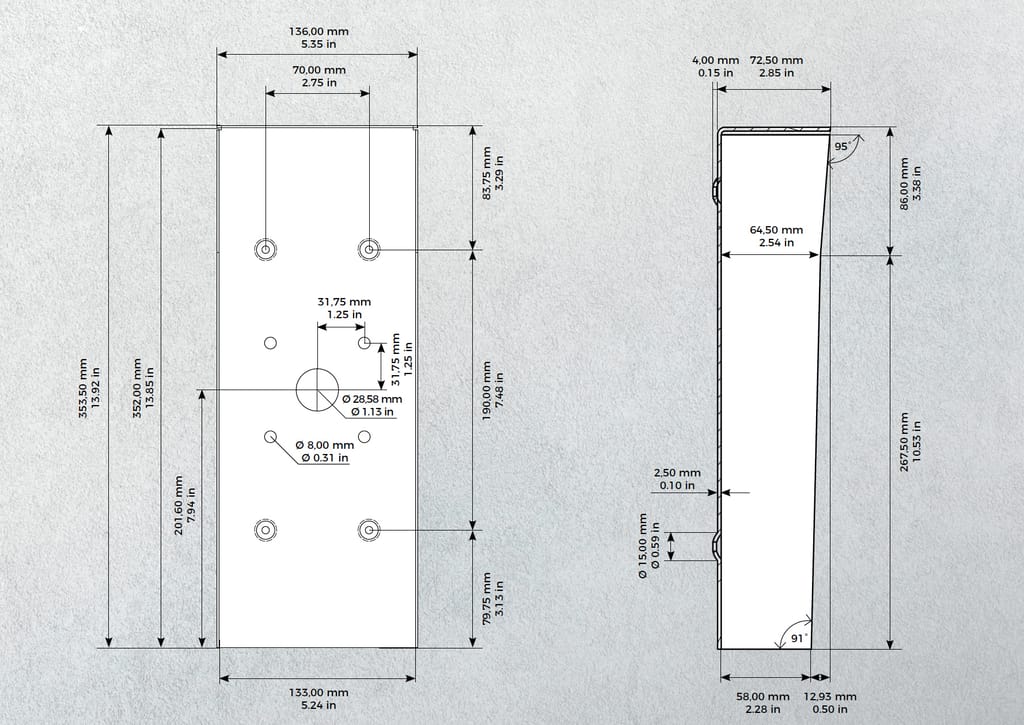

Dimensions from DoorBird's drawings.
Specifications
| Material | |
|---|---|
| Steel | V4A stainless (1.4404) |
| Finish | Brushed |
| Dimensions | |
| Height | 14.11 in (358.5 mm) |
| Width | 5.35 in (136 mm) |
| Depth, top | 2.85 in (72.5 mm) |
| Depth, bottom | 2.34 in (59.5 mm) |
| Install | |
| Cable hole | Ø31 mm |
| Requires | Surface-mount housing |
| Compatibility | |
| Fits | D2101KV + 8 siblings |
| Warranty | |
| Warranty | 24 months (DoorBird) |
Frequently asked questions
Does the hood work with a flush-mounted station?
No. DoorBird says the hood requires the surface-mount housing, so it only fits surface installs.
Which DoorBird door stations does it fit?
DoorBird says it fits only these IP video door stations: D2101KV, D2102FV Fingerprint 50, D2102FV EKEY, D2101FV EKEY sLine, D2102FV EKEY sLine, D2201KV, D2202FV Fingerprint 50, D2201FV EKEY sLine and D2202FV EKEY sLine. It does not fit the D2101V or D2201V, which use different housings.
Does it include the surface housing or the intercom?
No. The hood, the surface-mount housing and the door station are separate products. You need all three for a hooded install.
What is it made of?
Brushed V4A stainless steel (grade 1.4404 on DoorBird's drawing), which DoorBird calls salt-water and grinding-dust resistant, matching the surface housing.
How big is it?
358.5 × 136 mm (14.11 × 5.35 in), 72.5 mm (2.85 in) deep at the top, tapering to 59.5 mm (2.34 in) at the bottom.
Does it stop sun damage to the camera?
It shades the station from overhead sun and rain, but DoorBird still advises against mounting where direct sunlight hits the camera: sun damage to the image sensor isn't covered by the warranty.
What warranty does it have?
DoorBird gives 24 months from the original purchase date.
