DoorBird D2101KV Surface-Mount Housing, V4A Stainless Steel Backbox
On-wall backbox for the DoorBird D2101KV and its keypad and fingerprint siblings: no wall cut-out, and it's the housing the protective hood needs.
Order within for ship estimate Delivery ·
- Ships next business day
- Shipping from $15.00
Arrives
- No wall cut-out needed
- V4A brushed stainless steel
- Takes the protective hood
About

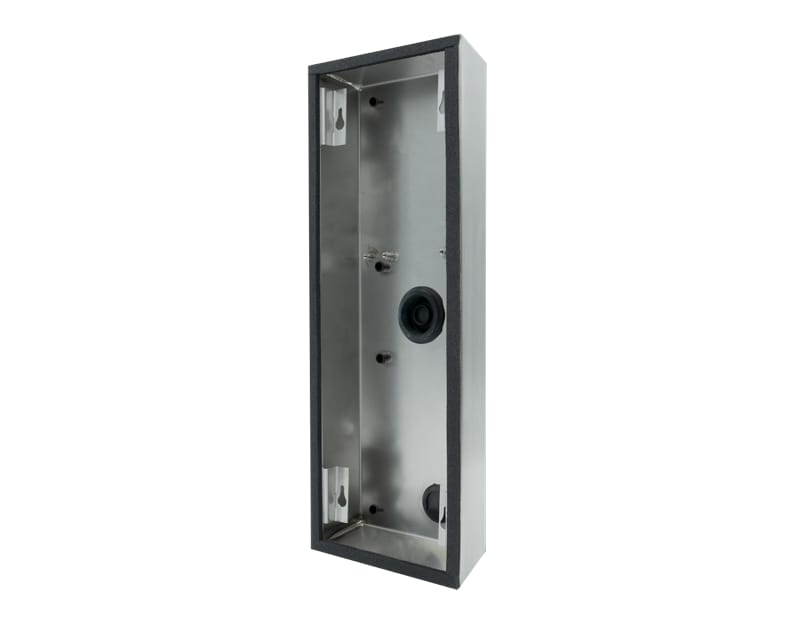

The DoorBird surface-mount housing is the on-wall backbox for the D2101KV and its sibling door stations. It screws to the face of a wall, pillar or post, so there's no cut-out to make, and the door station's front panel closes over it with security screws.
No wall cut-outV4A stainless (1.4404)Takes the protective hood
It's also the housing DoorBird's protective hood needs, so choose it for exposed gate pillars and walls.
Fits these DoorBird door stations
- D2101KV
- D2102FV Fingerprint 50
- D2102FV EKEY
- D2101FV EKEY sLine
- D2102FV EKEY sLine
- D2201KV
- D2202FV Fingerprint 50
- D2201FV EKEY sLine
- D2202FV EKEY sLine
Per DoorBird, it fits only these models.
- D2101V and D2201V: they use a different surface housing
What's in the box
- Surface-mount backbox in brushed V4A stainless steel, with a rubber cable-entry seal and covers for unused openings
DoorBird doesn't publish a fuller packing list.
What you'll still need
- A compatible DoorBird door station, such as the D2101KV, sold separately
- Wall anchors and screws suited to your wall or pillar
- A shielded Cat.5 or better network cable to a PoE switch or injector (IEEE 802.3af Mode A)
- Optional: the D2101KV protective hood
Installation notes
- Place the rubber seal on the Ø31 mm cable opening, pierce its centre with a screwdriver and feed the cables through; cap unused openings.
- Mount the camera lens at least 57 in (145 cm) high, out of direct sunlight.
- Building it into a pillar or mailbox cavity? DoorBird requires drainage and air circulation, or the warranty is declined.
- Clean the stainless with water and a soft cloth; DoorBird warns against steel wool, bleach and chloride cleaners.
Surface or flush?
| Housing | Wall work | Hood |
|---|---|---|
| Surface | Screws to surface | Yes |
| Flush | Cut-out, 45 mm deep | No |
Steel: this surface housing is V4A (1.4404); the flush housing is 1.4301.

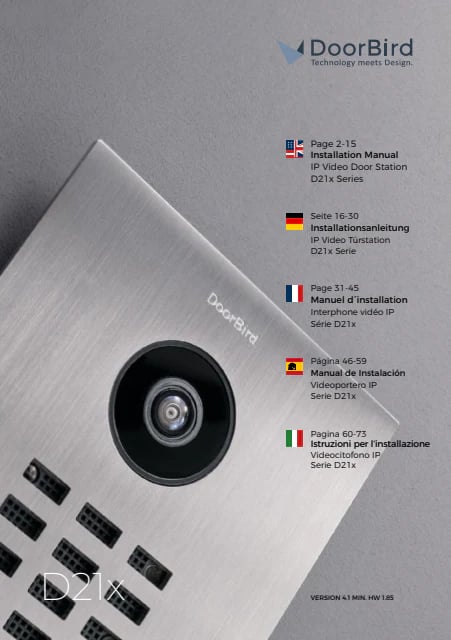

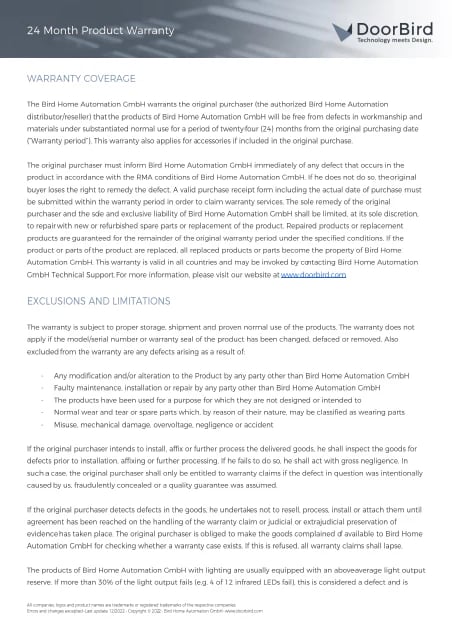

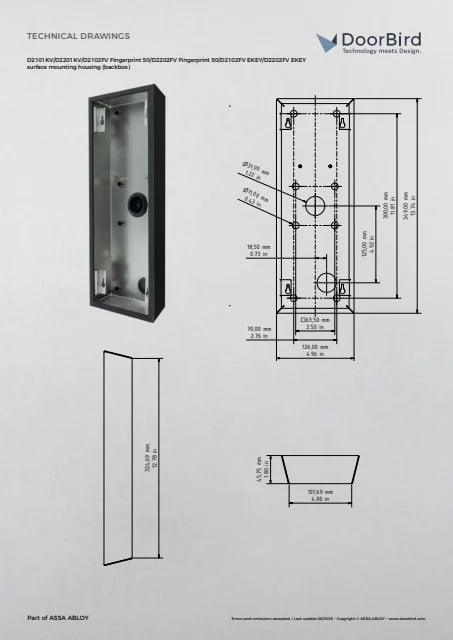

DoorBird covers it for 24 months from purchase. The dimension drawing, the D21x installation manual and the warranty terms are in Documents below.
Comparison from DoorBird's product pages and drawings.
Specifications
| Material | |
|---|---|
| Steel | V4A stainless (1.4404) |
| Finish | Brushed |
| Dimensions | |
| Face (H×W) | 13.74 × 4.96 in |
| Face (H×W), mm | 349 × 126 mm |
| Depth | 1.80 in (45.75 mm) |
| Back (H×W), mm | 324.7 × 101.7 mm |
| Install | |
| Cable entry | Ø31 mm, rubber seal |
| Mounting | On-wall, no cut-out |
| Compatibility | |
| Fits | D2101KV + 8 siblings |
| Protective hood | Compatible, sold sep. |
| Warranty | |
| Warranty | 24 months (DoorBird) |
Frequently asked questions
Does it include the intercom?
No, it's only the backbox. The D2101KV door station is sold separately, and DoorBird's data sheet says the station ships without a mounting housing.
Which DoorBird door stations does it fit?
DoorBird says it fits only these IP video door stations: D2101KV, D2102FV Fingerprint 50, D2102FV EKEY, D2101FV EKEY sLine, D2102FV EKEY sLine, D2201KV, D2202FV Fingerprint 50, D2201FV EKEY sLine and D2202FV EKEY sLine. It does not fit the D2101V or D2201V, which use different housings.
Surface or flush: which do I need?
Surface mount screws onto the wall or pillar with no cut-out, and it's the only option that takes the protective hood. Flush mount recesses the station into the wall and needs a cut-out about 13 × 4.4 in and 1.8 in deep.
Does it take the protective hood?
Yes. DoorBird says the D2101KV protective hood requires this surface-mount housing; it can't be used on flush installs.
Will it rust?
It's V4A stainless steel (grade 1.4404 on DoorBird's drawing), which DoorBird calls salt-water and grinding-dust resistant. DoorBird notes any stainless can show surface rust from iron particles, so wipe off metal dust promptly and avoid steel wool or chloride cleaners.
How do the cables get in?
Through a Ø31 mm opening with a rubber seal that you pierce with a screwdriver. Covers close any unused openings.
Can I mount it on a gate post or pillar?
Yes, on any flat surface. If you build it into a pillar or mailbox cavity instead, DoorBird requires protection from dripping and condensation, air circulation and drainage at the base, or the warranty is declined.
What warranty does it have?
DoorBird gives 24 months from the original purchase date.
