DoorBird 15 V DC Power Supply, 1 A Plug-In Adapter for Door Stations

1 A plug-in adapter from DoorBird with US, EU, UK and AU plugs. Powers one DoorBird device where PoE isn't available.

$65
Details
  • Ships next business day
  • Exact carrier rate, no markup
  • 2-year warranty

Delivery estimate shown at checkout.

Ships free with any of our gates - it rides in the crate

Ships for $8.00–$15.00 · 1–5 days in transit

Specifications

10 specifications
Output
Output15 V DC, 1 A
Connection2 bare wires (+/−)
Input
US mainsWorks on 120 V AC
Plug adaptersUS, EU, UK, AU
Use
TypePlug-in mains adapter
Devices per adapterOne
EnvironmentIndoor use only
ColourWhite
Compatibility
Door stationsDoorBird D11x, D21x
AccessoriesA1081, A1061W, A1051
Real Installations

Gates built in our San Jose shop and installed on real driveways.

Arched black steel center-opening driveway gate with puppy pickets
Arched steel with puppy pickets
Center opening · Black steel frame
Black steel driveway gate with horizontal ironwood boards attached to the face of the frame
Horizontal ironwood boards
Face-mounted wood · Black steel frame
Arched black steel double driveway gate with open vertical pickets
Arched steel with single pickets
Center opening · Black steel frame
Arched black steel driveway gate with face-mounted vertical ironwood boards and spear-point finials
Vertical ironwood with finials
Arched top · Spear-point finials
Black steel center-opening driveway gate with puppy pickets and an arched top
Puppy pickets with an arched top
Center opening · Black steel frame
Black steel center-opening driveway gate with face-mounted horizontal ironwood boards for privacy
Horizontal ironwood privacy gate
Face-mounted wood · Center opening

Questions & Answers

Which DoorBird devices does it power?

DoorBird lists D11x and D21x door stations (including the D2101KV), the A1081 I/O Door Controller, the A1061W door chime, the A1051 firewall, the D410 smart door controller and the A8008 radar motion sensor. It is not listed for PoE+ or 57 V devices such as the D22x and D31x series.

Do I need it for a D2101KV?

Only if you aren't using PoE. The D2101KV accepts 15 V DC, but it runs on PoE (IEEE 802.3af Mode A) over its network cable, and DoorBird's D21x manual recommends PoE. No power supply comes with the D2101KV.

Does it work on US outlets?

Yes. A US plug is included along with EU, UK and AU plugs, and it runs on standard 120 V AC.

Can one adapter power several devices?

No. It's designed to power one device. For several devices, DoorBird suggests a PoE switch or a DIN-rail power supply.

Can I use a generic 15 V supply instead?

DoorBird says to use only its own power supplies, which are electrically stabilised to avoid audio interference. Using a third-party supply voids the device's warranty.

How does it connect to the device?

The lead ends in two bare wires that go into the device's 15 VDC screw terminal: red to + and black to −. Don't use it and PoE on the same device at the same time.

Isn't a power supply already in the box?

The A1081 controller and the A1101 indoor station each include one. D21x door stations such as the D2101KV don't, so this adapter is for them (when not on PoE) or as a spare.

Can it be used outdoors?

No. It's for indoor use only; run low-voltage wire from an indoor outlet to the device.

About

  • 15 V DC, 1 A output
  • US, EU, UK and AU plugs
  • Keeps the DoorBird warranty valid

The DoorBird 15 V DC power supply is the official plug-in adapter for DoorBird devices that aren't powered over the network cable. It delivers 15 V DC at 1 A to one device and comes with US, EU, UK and AU plugs.

15 V DCoutput
1 Aoutput current
4plug adapters
24 moDoorBird warranty

Powers these DoorBird devices

  • D11x and D21x door stations, including the D2101KV
  • A1081 I/O Door Controller
  • A1061W IP door chime and A1051 internet firewall
  • D410 smart door controller and A8008 4D radar motion sensor
  • Devices that need PoE+ or 57 V, such as the D22x and D31x series: not on DoorBird's list
  • More than one device: one adapter powers one device; for several, DoorBird suggests a PoE switch or a DIN-rail supply

What's in the box

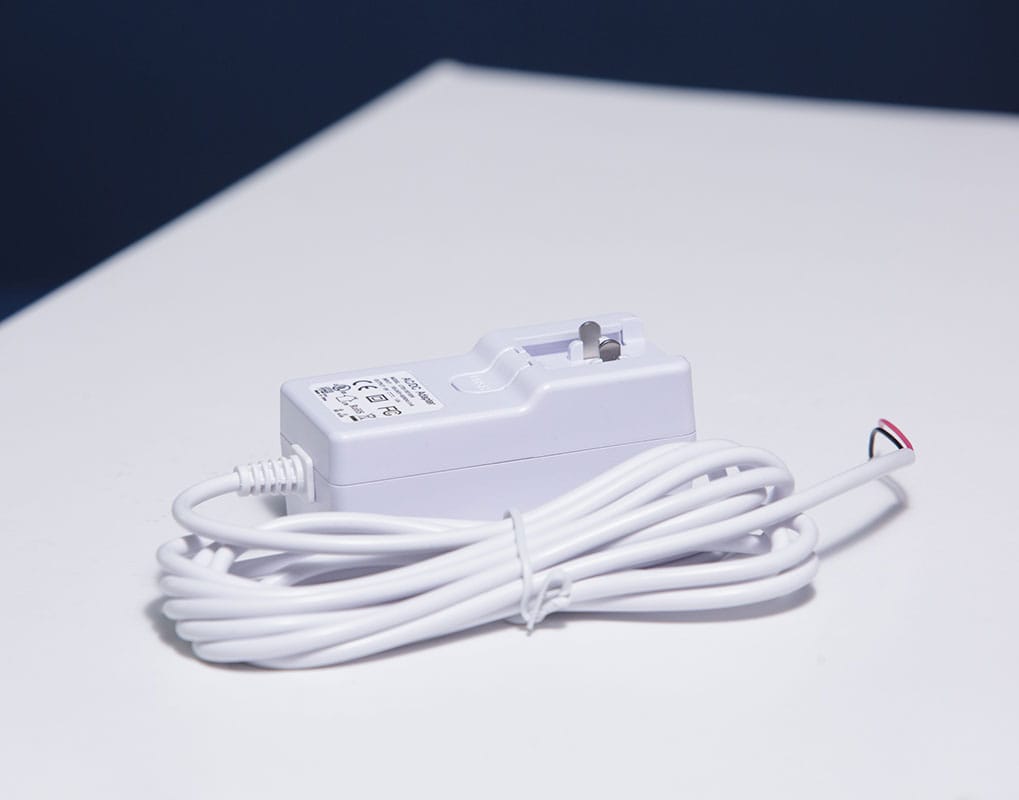

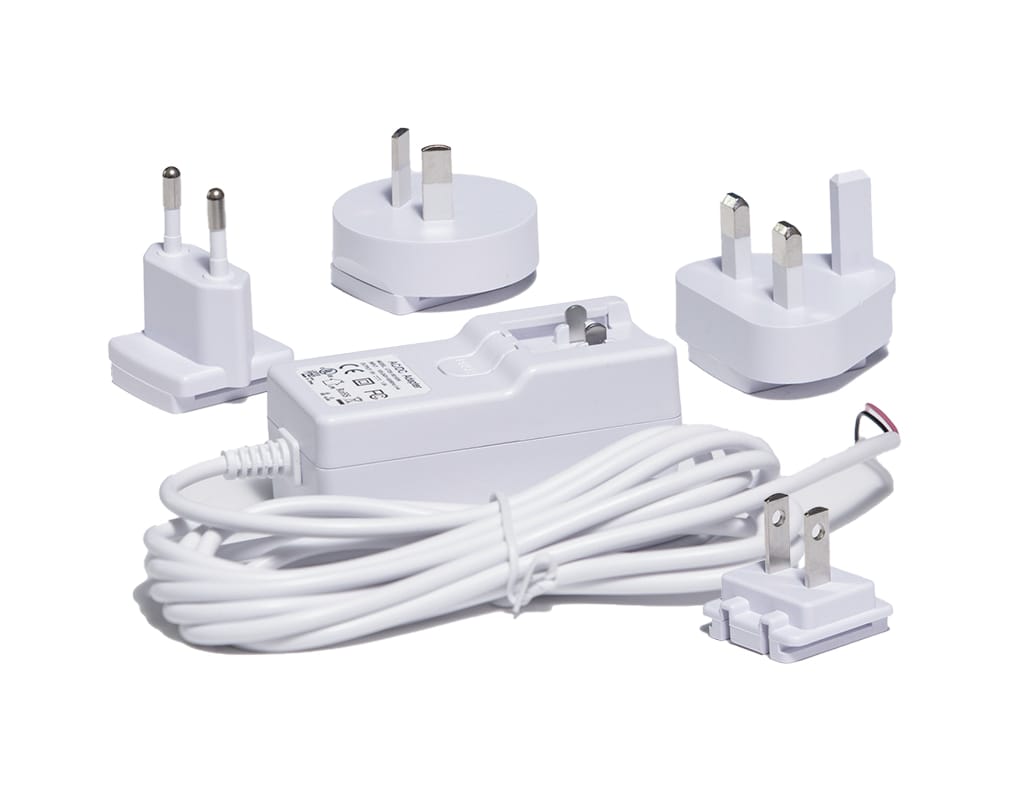

  • DoorBird 15 V DC, 1 A mains adapter with a lead ending in two bare wires

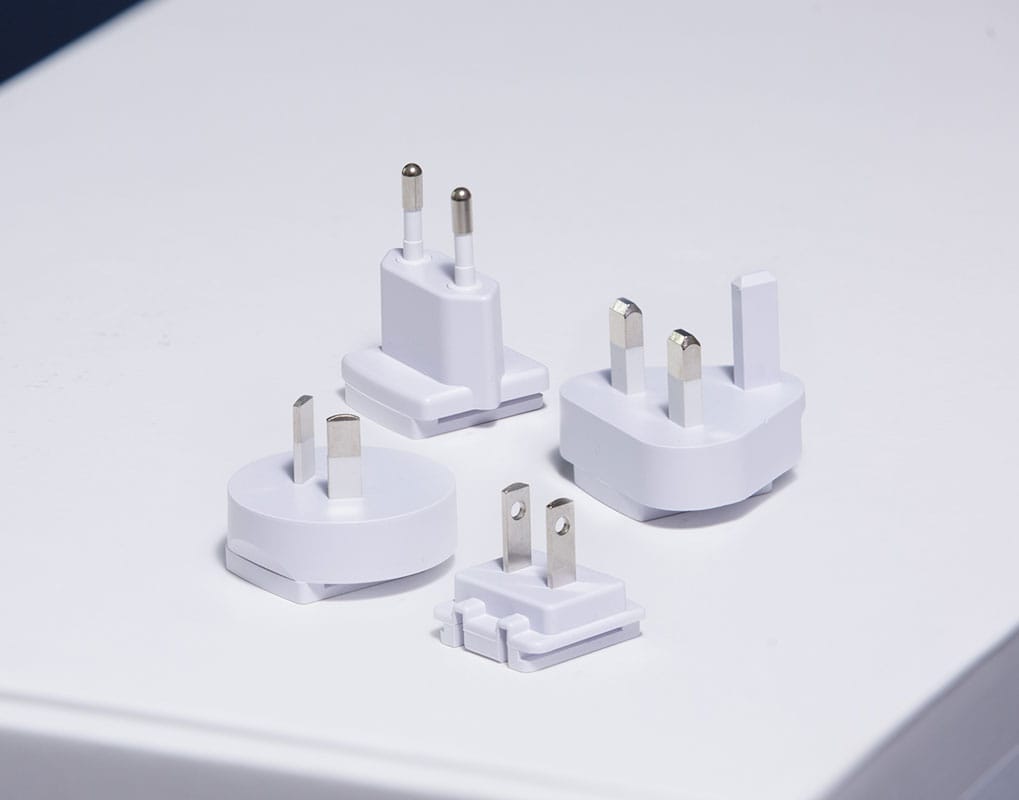

  • Interchangeable plug adapters: US, EU, UK and AU

What you'll still need

  • A DoorBird device with a 15 V DC screw-terminal input
  • Two-conductor wire to extend the run if the device isn't near an outlet

Wiring and use

Connect red to 15 VDC + and black to 15 VDC − on the device's screw terminal. Don't power a device from this adapter and PoE at the same time. The adapter is for indoor use only.

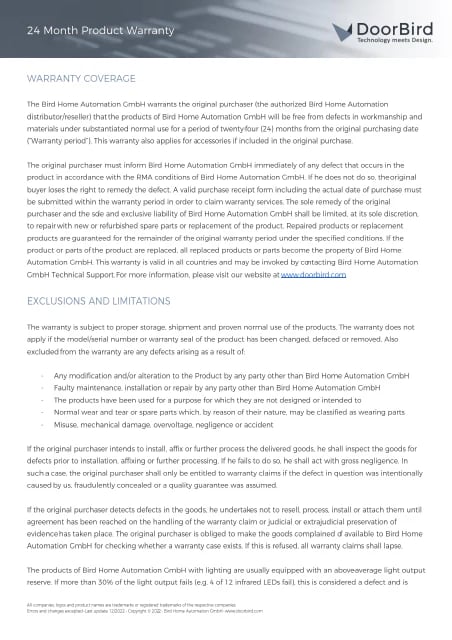

DoorBird covers it for 24 months from purchase. DoorBird also says its devices must run on DoorBird-sourced power supplies: a third-party supply voids the device's warranty.
