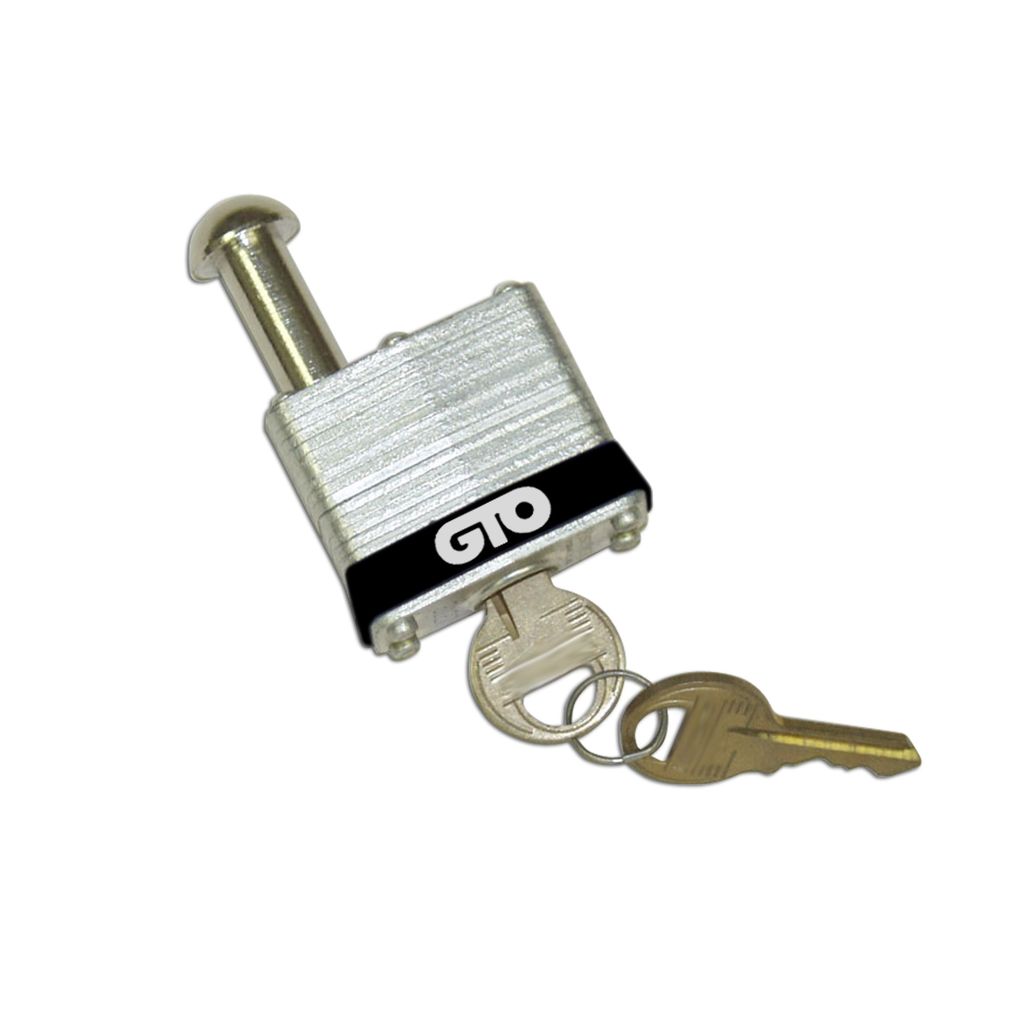

Nice FM345 Security Pin Lock for Swing Gate Opener Arms, Keyed

A keyed pin that replaces the front clevis pin on Nice/GTO/Linear Pro swing opener arms, so the arm can't be pulled off the gate and stolen.

$35
Details
  • Ships next business day
  • Exact carrier rate, no markup
  • 1-year warranty

Delivery estimate shown at checkout.

Ships free with any of our gates - it rides in the crate

Ships for $8.00–$17.00 · 1–5 days in transit

Specifications

12 specifications
Fit
Operator brandNice
MotionSwing, Slide
Swing openersPRO-SW2000XLS, 3000XLS, 4000XLS (front mount)
Slide openersSL2000B-style chain brackets (2 per gate)
ReplacesFront clevis pin (swing); chain-bracket pin (slide)
Not forLiftMaster, All-O-Matic
Function
PurposeDeters arm removal/theft
Rear mountKeeps its standard clevis pin
Locks gate closedNo (see FM144)
Keys
Keys included2 on a ring
Keyed-alike optionFM345KA 10-pack
Warranty
Manufacturer warranty12 months
Real Installations

Gates built in our San Jose shop and installed on real driveways.

Arched black steel center-opening driveway gate with puppy pickets
Arched steel with puppy pickets
Center opening · Black steel frame
Black steel driveway gate with horizontal ironwood boards attached to the face of the frame
Horizontal ironwood boards
Face-mounted wood · Black steel frame
Arched black steel double driveway gate with open vertical pickets
Arched steel with single pickets
Center opening · Black steel frame
Arched black steel driveway gate with face-mounted vertical ironwood boards and spear-point finials
Vertical ironwood with finials
Arched top · Spear-point finials
Black steel center-opening driveway gate with puppy pickets and an arched top
Puppy pickets with an arched top
Center opening · Black steel frame
Black steel center-opening driveway gate with face-mounted horizontal ironwood boards for privacy
Horizontal ironwood privacy gate
Face-mounted wood · Center opening

Questions & Answers

What exactly does the FM345 replace?

The clevis pin at the arm's front mount, where it attaches to the gate bracket, on Nice/GTO/Linear Pro DC swing operators.

What does it prevent?

Removal of the opener arm without the key, which is how operators near a road get stolen.

Does it lock the gate closed?

No. It secures the arm to the gate. To lock the gate itself closed, Nice's manual points to the FM144 automatic gate lock.

Which openers does it fit?

Nice, GTO and Linear Pro DC swing operators: the PRO-SW2000XLS, 3000XLS and 4000XLS manuals list it for the front mount. On Nice DC slide operators such as the SL2000B it locks the chain brackets.

Will it fit my LiftMaster or All-O-Matic opener?

No. It's made for Nice operators (GTO, Linear Pro and Mighty Mule are Nice brands), and no LiftMaster or All-O-Matic document lists it. LiftMaster makes its own pin lock for its swing arms.

Does it work on a slide gate opener?

Yes, on Nice DC slide operators such as the SL2000B. It goes through each chain bracket above the quick-release pin, so nobody can pull the pin and disconnect the gate. A slide gate has two chain brackets, so order two.

Does it lock both ends of the swing arm?

No. Nice's manuals put it on the front mount, where the arm meets the gate bracket, because that's the pin a thief pulls. The rear post mount keeps its standard clevis pin.

Will it fit a Mighty Mule opener?

Mighty Mule is Nice's DIY line, and its own front-mount pin lock is the FM133. Retailers sell the FM345 for Mighty Mule arms too, but one buyer found it too big for an MM562, so check your clevis pin first.

How many keys come with it?

Two, on a ring. For one key across several gates, order the FM345KA keyed-alike 10-pack.

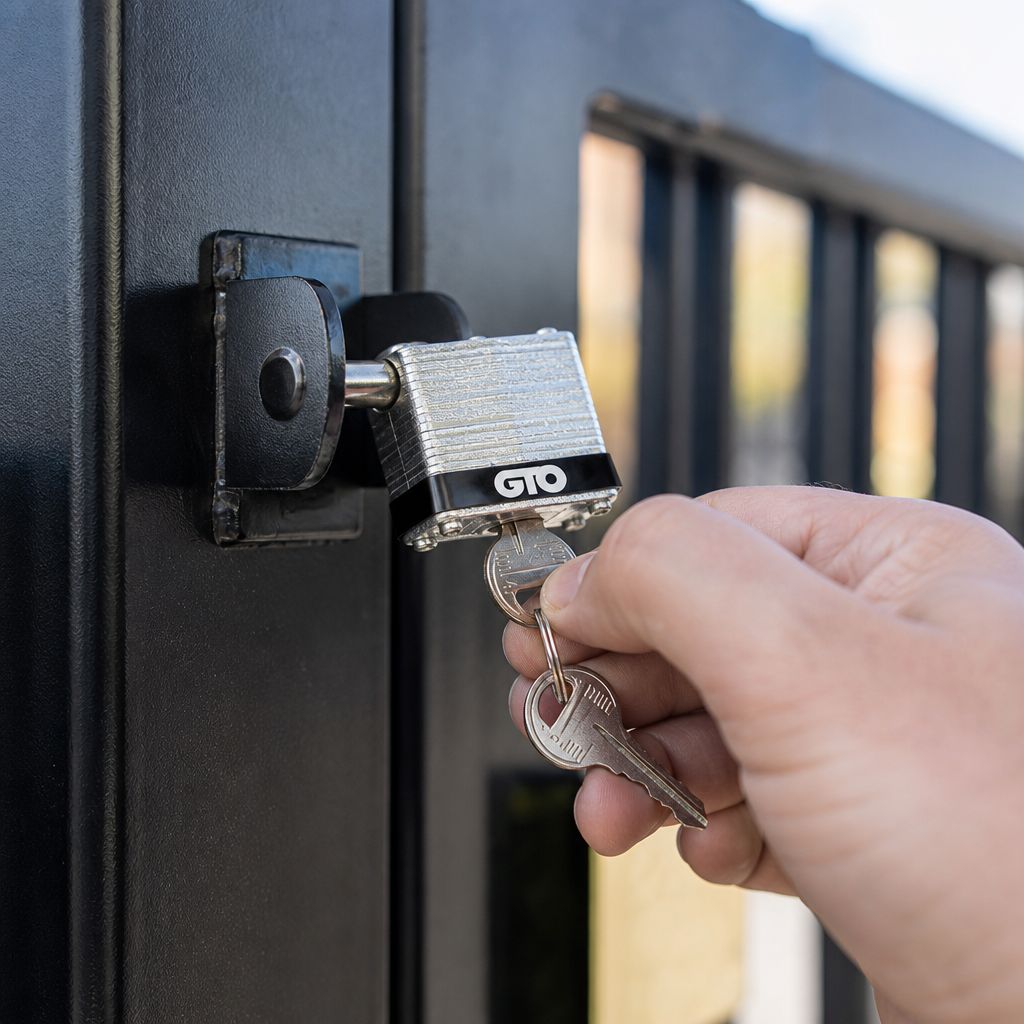

How do I open the gate by hand with it installed?

Turn the control box power switch off, then unlock and remove the FM345 with its key to free the arm from the gate bracket.

I have several gates. Can they share one key?

Yes: order the FM345KA, a 10-pack of pin locks keyed alike.

What is the warranty?

12 months from purchase on Nice gate accessories, with proof of purchase.

About

  • Keyed replacement for the front clevis pin
  • Deters theft of the opener arm
  • Fits Nice/GTO swing arms and SL2000B slide chains

The Nice FM345 is a keyed security pin for Nice, GTO and Linear Pro gate openers. It replaces the plain clevis pin at the arm's front mount, so the opener can't be pulled off the gate without the key.

PRO-SW2000XLSPRO-SW3000XLSPRO-SW4000XLSSL2000B slideKeyed12-month warranty

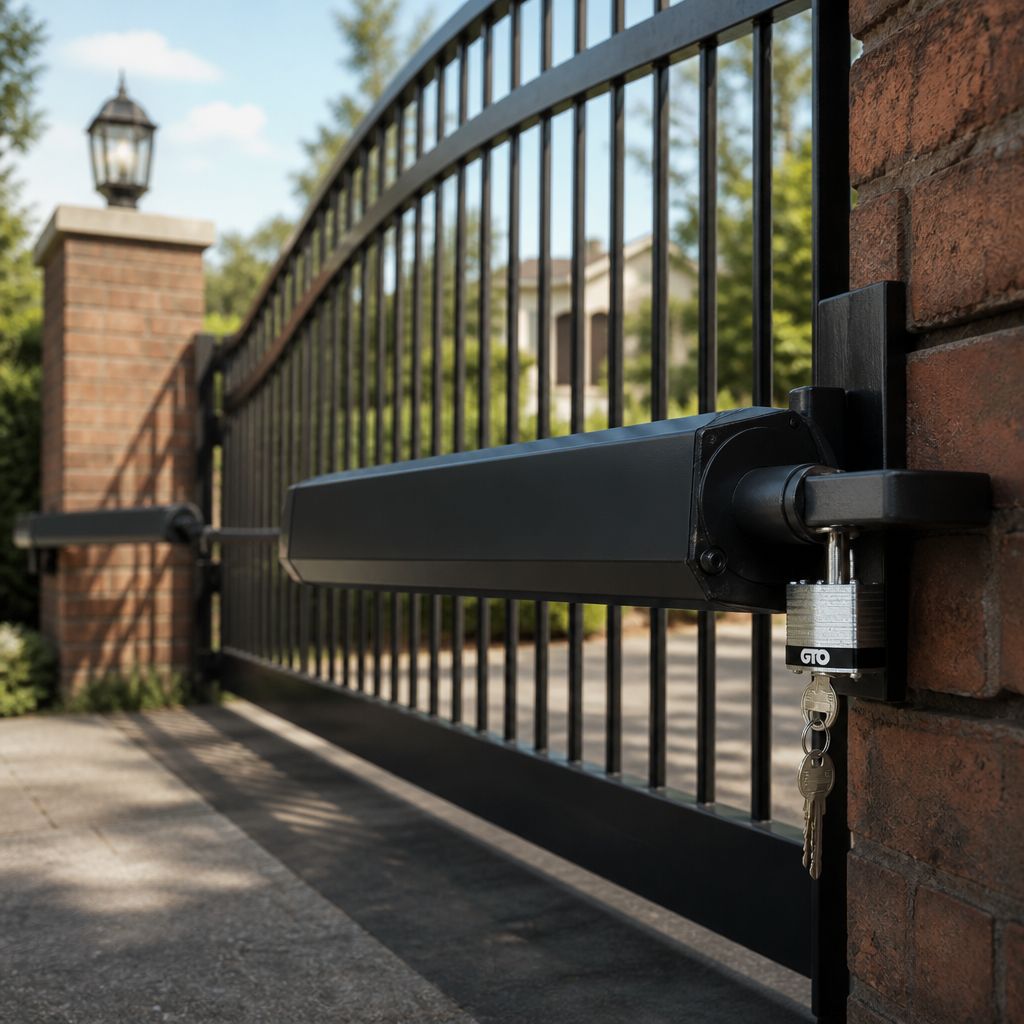

The front mount is the one that holds the arm to the gate bracket. For an opener within reach of the road, it's the simplest theft deterrent you can add.

Will it fit?

  • Nice/GTO/Linear Pro DC swing operators: the PRO-SW2000XLS, 3000XLS and 4000XLS manuals all list it for the front mount.
  • Nice DC slide operators such as the SL2000B: it goes through each chain bracket above the quick-release pin, so the chain can't be unpinned. A slide gate has two chain brackets, so order two.
  • Mighty Mule is Nice's DIY line and sells its own pin lock, the FM133. Check your clevis pin before ordering the FM345 for a Mighty Mule arm.
  • Not for LiftMaster or All-O-Matic. Their arms use their own pins and locks.

What it does and doesn't do

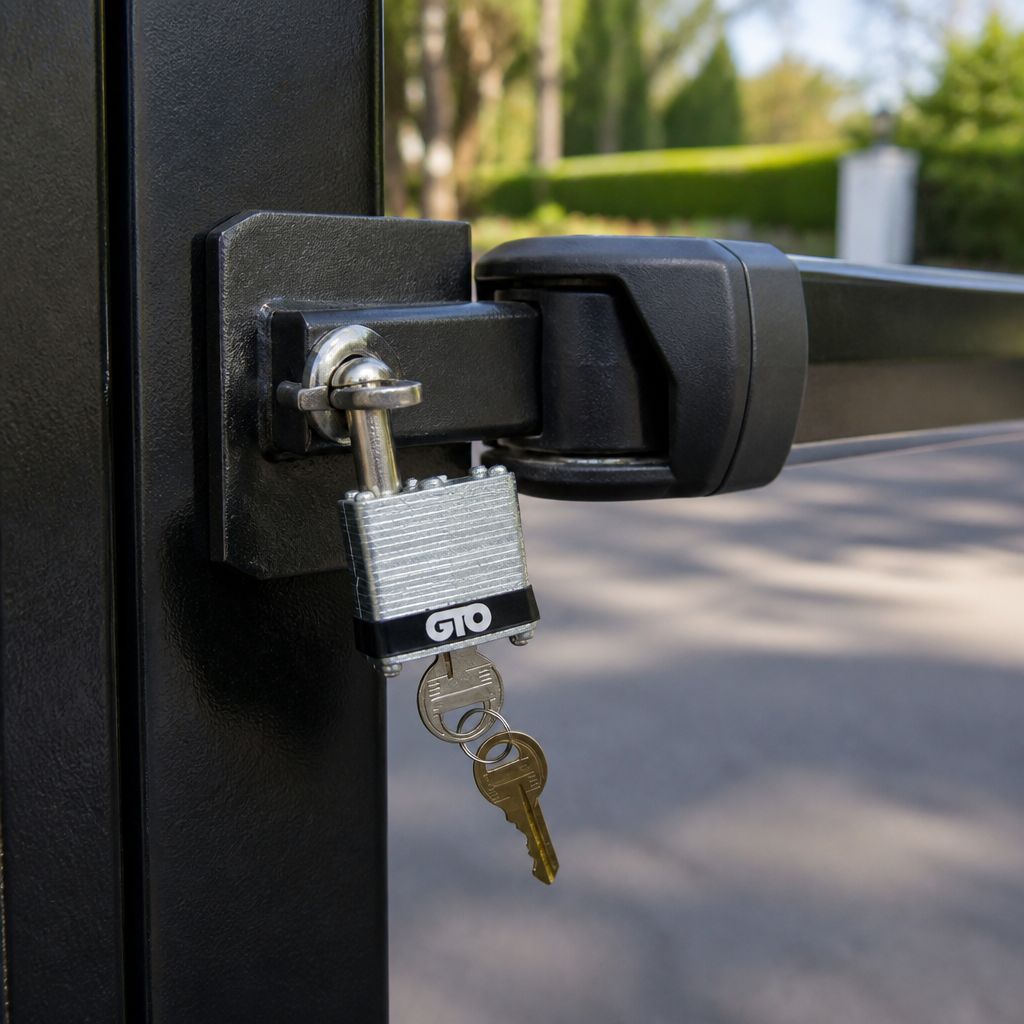

  • Does: keeps the arm on the gate. Removing the pin takes the key.
  • Doesn't: lock the rear (post) mount. Nice puts it on the front mount, the one a thief pulls to take the arm.
  • Doesn't: lock the gate closed. For that, add the FM144 automatic gate lock.

Installing it

Turn the opener's control box power switch off, remove the front clevis pin and its clip, and put the FM345 through the same holes. To take the arm off later, turn the power off and unlock the pin with its key.

Several gates?

The FM345KA is a 10-pack keyed alike, so one key opens every lock.

Comes with 2 keys on a ring. Nice warrants its gate accessories for 12 months from purchase with proof of purchase.

Buy with confidence

30-day returns

Return it within 30 days of delivery. Change-of-mind returns carry a 25% restocking fee; damage and defects are always on us.

Full return policy

1-year warranty

Nice 12-month limited warranty on gate accessories from the date of purchase, with proof of purchase.

Warranty details

  • Priced live for your ZIP by USPS, UPS and FedEx. Ships free in the crate when ordered with a gate from the same seller.
  • Free tech support
  • Nationwide shipping
  • Questions? Call (408) 260-5145

Documents 3

Manual

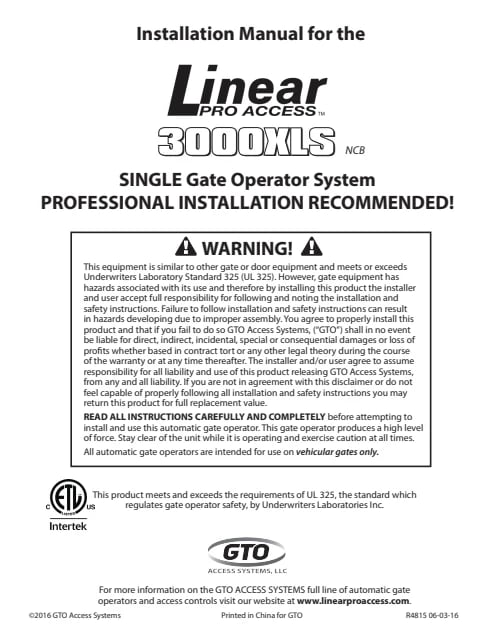

PRO-SW3000XLS installation manual (pin lock on the front mount)
